PD-1 Monoclonal Antibody

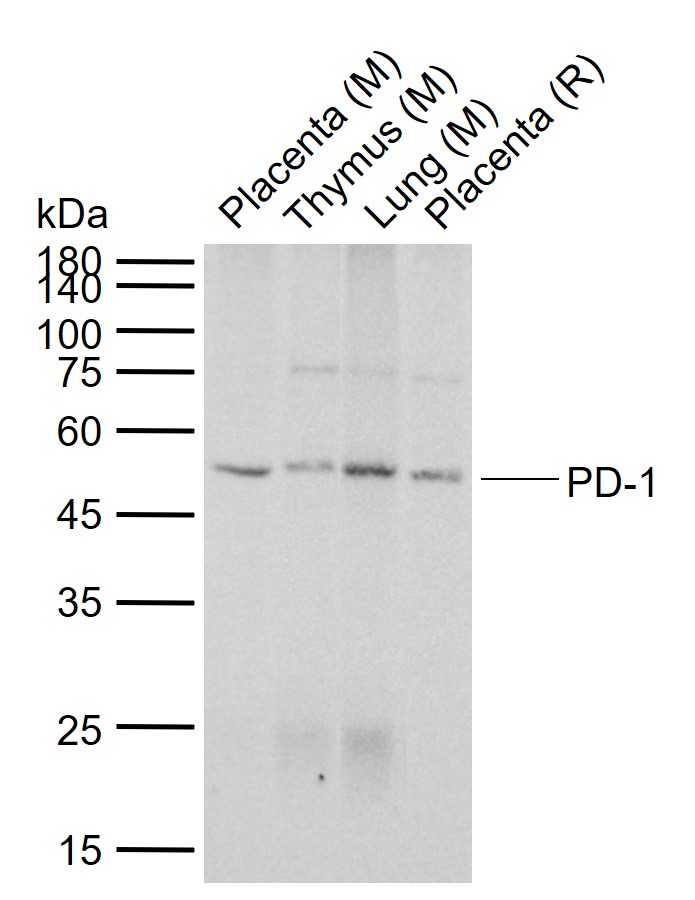

$Lane 1: Mouse Placenta tissue lysates; Lane 2: Mouse Thymus tissue lysates; Lane 3: Mouse Lung tissue lysates; Lane 4: Rat Placenta tissue lysates probed with PD-1 Monoclonal Antibody, Unconjugated (bsm-43072M) at 1:1000 dilution and 4\u00b0C overnight incubation. Followed by conjugated secondary antibody incubation at 1:20000 for 60 min at 37˚C.$

Lane 1: Mouse Placenta tissue lysates; Lane 2: Mouse Thymus tissue lysates; Lane 3: Mouse Lung tissue lysates; Lane 4: Rat Placenta tissue lysates probed with PD-1 Monoclonal Antibody, Unconjugated (bsm-43072M) at 1:1000 dilution and 4\u00b0C overnight incubation. Followed by conjugated secondary antibody incubation at 1:20000 for 60 min at 37˚C.

$Paraformaldehyde-fixed, paraffin embedded Human Lung Cancer; Antigen retrieval by boiling in sodium citrate buffer (pH6.0) for 15 min; The section was incubated with PD-1 Monoclonal Antibody, Unconjugated (bsm-43072M) at 1:200 overnight at 4\u00b0C, followed by conjugation to the bs-40296G-HRP and DAB (C-0010) staining.$

Paraformaldehyde-fixed, paraffin embedded Human Lung Cancer; Antigen retrieval by boiling in sodium citrate buffer (pH6.0) for 15 min; The section was incubated with PD-1 Monoclonal Antibody, Unconjugated (bsm-43072M) at 1:200 overnight at 4\u00b0C, followed by conjugation to the bs-40296G-HRP and DAB (C-0010) staining.

$Paraformaldehyde-fixed, paraffin embedded Human Lung squamous cell carcinoma; Antigen retrieval by boiling in sodium citrate buffer (pH6.0) for 15 min; The section was incubated with PD-1 Monoclonal Antibody, Unconjugated (bsm-43072M) at 1:200 overnight at 4\u00b0C, followed by conjugation to the bs-40296G-HRP and DAB (C-0010) staining.$

Paraformaldehyde-fixed, paraffin embedded Human Lung squamous cell carcinoma; Antigen retrieval by boiling in sodium citrate buffer (pH6.0) for 15 min; The section was incubated with PD-1 Monoclonal Antibody, Unconjugated (bsm-43072M) at 1:200 overnight at 4\u00b0C, followed by conjugation to the bs-40296G-HRP and DAB (C-0010) staining.

$Paraformaldehyde-fixed, paraffin embedded Human Pyogenic appendicitis; Antigen retrieval by boiling in sodium citrate buffer (pH6.0) for 15 min; The section was incubated with PD-1 Monoclonal Antibody, Unconjugated (bsm-43072M) at 1:200 overnight at 4\u00b0C, followed by conjugation to the bs-40296G-HRP and DAB (C-0010) staining.$

Paraformaldehyde-fixed, paraffin embedded Human Pyogenic appendicitis; Antigen retrieval by boiling in sodium citrate buffer (pH6.0) for 15 min; The section was incubated with PD-1 Monoclonal Antibody, Unconjugated (bsm-43072M) at 1:200 overnight at 4\u00b0C, followed by conjugation to the bs-40296G-HRP and DAB (C-0010) staining.

$Paraformaldehyde-fixed, paraffin embedded Human Tonsil; Antigen retrieval by boiling in sodium citrate buffer (pH6.0) for 15 min; The section was incubated with PD-1 Monoclonal Antibody, Unconjugated (bsm-43072M) at 1:200 overnight at 4\u00b0C, followed by conjugation to the bs-40296G-HRP and DAB (C-0010) staining.$

Paraformaldehyde-fixed, paraffin embedded Human Tonsil; Antigen retrieval by boiling in sodium citrate buffer (pH6.0) for 15 min; The section was incubated with PD-1 Monoclonal Antibody, Unconjugated (bsm-43072M) at 1:200 overnight at 4\u00b0C, followed by conjugation to the bs-40296G-HRP and DAB (C-0010) staining.

Applications

ELISA
IHC-P
IHC-F
IF

Reactivity

Human

Overview
Catalog #	bsm-43072m
Product Name	PD-1 Monoclonal Antibody
Applications	ELISA, IHC-P, IHC-F, IF
Reactivity	Human
Specifications
Conjugation	Unconjugated
Host	Mouse
Source	Recombinant human PD-1 protein
Clonality	Monoclonal
Clone #	1A5
Isotype	IgG
Concentration	1mg/ml
Purification	Purified by Protein A.
Storage Buffer	0.01M TBS(pH7.4) with 1% BSA, 0.02% Proclin300 and 50% Glycerol.
Storage Condition	Shipped at 4C. Store at -20C for one year. Avoid repeated freeze/thaw cycles.
Target
Gene ID	29126
Swiss Prot	Q9NZQ7
Subcellular location	Secreted, Extracellular matrix
Synonyms	Programmed cell death protein 1; CD279; CD279 antigen; hPD 1; hPD-1; hSLE1; PD 1; PD1; PDCD 1; PDCD1; PDCD1_HUMAN; Programmed cell death 1; Protein PD 1; Protein PD-1; SLEB2; Systemic lupus erythematosus susceptibility 2.
Application Dilution
ELISA	1:500-1000
IHC-P	1:200-400
IHC-F	1:100-500
IF
