TOMM20 Polyclonal Antibody

$Lane 1: Mouse Kidney tissue lysates; Lane 2: Mouse Brain tissue lysates; Lane 3: Mouse Heart tissue lysates; Lane 4: Mouse NIH\/3T3 cell lysates; Lane 5: Rat Kidney tissue lysates; Lane 6: Rat Brain tissue lysates; Lane 7: Rat Heart tissue lysates; Lane 8: Human Hela cell lysates; Lane 9: Human THP-1 cell lysates; Lane 10: Human HL-60 cell lysates; Lane 11: Human 293T cell lysates probed with TOMM20 Polyclonal Antibody, Unconjugated (bs-7357R) at 1:1000 dilution and 4\u00b0C overnight incubation. Followed by conjugated secondary antibody incubation at 1:20000 for 60 min at 37\u02daC.$

Lane 1: Mouse Kidney tissue lysates; Lane 2: Mouse Brain tissue lysates; Lane 3: Mouse Heart tissue lysates; Lane 4: Mouse NIH\/3T3 cell lysates; Lane 5: Rat Kidney tissue lysates; Lane 6: Rat Brain tissue lysates; Lane 7: Rat Heart tissue lysates; Lane 8: Human Hela cell lysates; Lane 9: Human THP-1 cell lysates; Lane 10: Human HL-60 cell lysates; Lane 11: Human 293T cell lysates probed with TOMM20 Polyclonal Antibody, Unconjugated (bs-7357R) at 1:1000 dilution and 4\u00b0C overnight incubation. Followed by conjugated secondary antibody incubation at 1:20000 for 60 min at 37\u02daC.

$4% Paraformaldehyde-fixed HepG2 (H) cell; Triton X-100 at r.t. for 20 min; Antibody incubation with (TOMM20) polyclonal Antibody, unconjugated (bs-7357R) 1:100, 90 min at 37\u00b0C; followed by conjugated Goat Anti-Rabbit IgG antibody (green, bs-60295G-BF488) at 37\u00b0C for 90 min, DAPI (blue, C02-04002) was used to stain the cell nuclei. PBS instead of the primary antibody was used as the blank control.$

4% Paraformaldehyde-fixed HepG2 (H) cell; Triton X-100 at r.t. for 20 min; Antibody incubation with (TOMM20) polyclonal Antibody, unconjugated (bs-7357R) 1:100, 90 min at 37\u00b0C; followed by conjugated Goat Anti-Rabbit IgG antibody (green, bs-60295G-BF488) at 37\u00b0C for 90 min, DAPI (blue, C02-04002) was used to stain the cell nuclei. PBS instead of the primary antibody was used as the blank control.

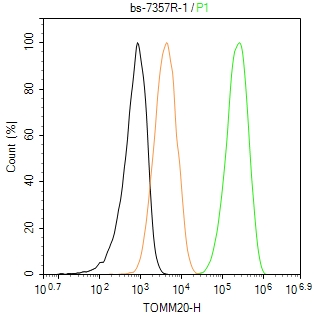

$The HepG2 (H) cells were fixed with 4% PFA (10 min at r.t.) and then permeabilized with 90% ice-cold methanol for 20 min at -20\u2103,the cells then were incubated in 5%BSA to block non-specific protein-protein interactions (30 min at r.t.), followed by secondary antibody incubation for 40 min at room temperature. Primary Antibody (green):Rabbit Anti-TOMM20 antibody (bs-7357R,1:100); Isotype Control (orange): Rabbit IgG (bs-0295P). Blank control (black): PBS. Acquisition of 20,000 events was performed.$

The HepG2 (H) cells were fixed with 4% PFA (10 min at r.t.) and then permeabilized with 90% ice-cold methanol for 20 min at -20\u2103,the cells then were incubated in 5%BSA to block non-specific protein-protein interactions (30 min at r.t.), followed by secondary antibody incubation for 40 min at room temperature. Primary Antibody (green):Rabbit Anti-TOMM20 antibody (bs-7357R,1:100); Isotype Control (orange): Rabbit IgG (bs-0295P). Blank control (black): PBS. Acquisition of 20,000 events was performed.

$Paraformaldehyde-fixed, paraffin embedded Rat Kidney; Antigen retrieval by boiling in sodium citrate buffer (pH6.0) for 15 min; The section was incubated with TOMM20 Polyclonal Antibody, Unconjugated (bs-7357R) at 1:200 overnight at 4\u00b0C, followed by conjugation to the bs-0295G-HRP and DAB (C-0010) staining.$

Paraformaldehyde-fixed, paraffin embedded Rat Kidney; Antigen retrieval by boiling in sodium citrate buffer (pH6.0) for 15 min; The section was incubated with TOMM20 Polyclonal Antibody, Unconjugated (bs-7357R) at 1:200 overnight at 4\u00b0C, followed by conjugation to the bs-0295G-HRP and DAB (C-0010) staining.

$Paraformaldehyde-fixed, paraffin embedded Mouse Kidney; Antigen retrieval by boiling in sodium citrate buffer (pH6.0) for 15 min; The section was incubated with TOMM20 Polyclonal Antibody, Unconjugated (bs-7357R) at 1:200 overnight at 4\u00b0C, followed by conjugation to the bs-0295G-HRP and DAB (C-0010) staining.$

Paraformaldehyde-fixed, paraffin embedded Mouse Kidney; Antigen retrieval by boiling in sodium citrate buffer (pH6.0) for 15 min; The section was incubated with TOMM20 Polyclonal Antibody, Unconjugated (bs-7357R) at 1:200 overnight at 4\u00b0C, followed by conjugation to the bs-0295G-HRP and DAB (C-0010) staining.

$Paraformaldehyde-fixed, paraffin embedded Rat Small Intestine; Antigen retrieval by boiling in sodium citrate buffer (pH6.0) for 15 min; The section was incubated with TOMM20 Polyclonal Antibody, Unconjugated (bs-7357R) at 1:200 overnight at 4\u00b0C, followed by conjugation to the bs-0295G-HRP and DAB (C-0010) staining.$

Paraformaldehyde-fixed, paraffin embedded Rat Small Intestine; Antigen retrieval by boiling in sodium citrate buffer (pH6.0) for 15 min; The section was incubated with TOMM20 Polyclonal Antibody, Unconjugated (bs-7357R) at 1:200 overnight at 4\u00b0C, followed by conjugation to the bs-0295G-HRP and DAB (C-0010) staining.

$Paraformaldehyde-fixed, paraffin embedded Mouse Small Intestine; Antigen retrieval by boiling in sodium citrate buffer (pH6.0) for 15 min; The section was incubated with TOMM20 Polyclonal Antibody, Unconjugated (bs-7357R) at 1:200 overnight at 4\u00b0C, followed by conjugation to the bs-0295G-HRP and DAB (C-0010) staining.$

Paraformaldehyde-fixed, paraffin embedded Mouse Small Intestine; Antigen retrieval by boiling in sodium citrate buffer (pH6.0) for 15 min; The section was incubated with TOMM20 Polyclonal Antibody, Unconjugated (bs-7357R) at 1:200 overnight at 4\u00b0C, followed by conjugation to the bs-0295G-HRP and DAB (C-0010) staining.

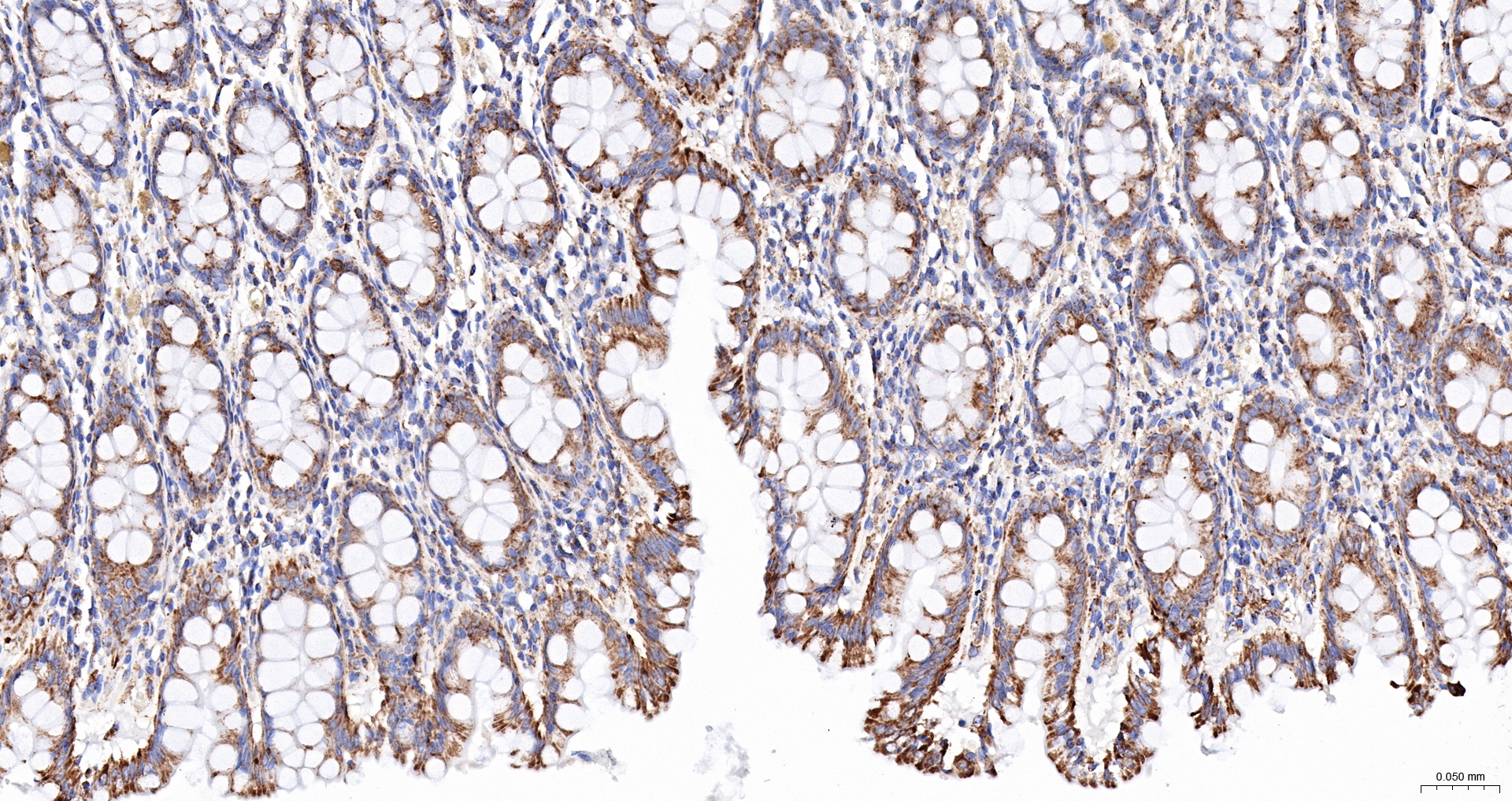

$Paraformaldehyde-fixed, paraffin embedded Human Colon; Antigen retrieval by boiling in sodium citrate buffer (pH6.0) for 15 min; The section was incubated with TOMM20 Polyclonal Antibody, Unconjugated (bs-7357R) at 1:200 overnight at 4\u00b0C, followed by conjugation to the bs-0295G-HRP and DAB (C-0010) staining.$

Paraformaldehyde-fixed, paraffin embedded Human Colon; Antigen retrieval by boiling in sodium citrate buffer (pH6.0) for 15 min; The section was incubated with TOMM20 Polyclonal Antibody, Unconjugated (bs-7357R) at 1:200 overnight at 4\u00b0C, followed by conjugation to the bs-0295G-HRP and DAB (C-0010) staining.

$Paraformaldehyde-fixed, paraffin embedded Human Lung Cancer; Antigen retrieval by boiling in sodium citrate buffer (pH6.0) for 15 min; The section was incubated with TOMM20 Polyclonal Antibody, Unconjugated (bs-7357R) at 1:200 overnight at 4\u00b0C, followed by conjugation to the bs-0295G-HRP and DAB (C-0010) staining.$

Paraformaldehyde-fixed, paraffin embedded Human Lung Cancer; Antigen retrieval by boiling in sodium citrate buffer (pH6.0) for 15 min; The section was incubated with TOMM20 Polyclonal Antibody, Unconjugated (bs-7357R) at 1:200 overnight at 4\u00b0C, followed by conjugation to the bs-0295G-HRP and DAB (C-0010) staining.

$Paraformaldehyde-fixed, paraffin embedded Human Cervical Cancer; Antigen retrieval by boiling in sodium citrate buffer (pH6.0) for 15 min; The section was incubated with TOMM20 Polyclonal Antibody, Unconjugated (bs-7357R) at 1:200 overnight at 4\u00b0C, followed by conjugation to the bs-0295G-HRP and DAB (C-0010) staining.$

Paraformaldehyde-fixed, paraffin embedded Human Cervical Cancer; Antigen retrieval by boiling in sodium citrate buffer (pH6.0) for 15 min; The section was incubated with TOMM20 Polyclonal Antibody, Unconjugated (bs-7357R) at 1:200 overnight at 4\u00b0C, followed by conjugation to the bs-0295G-HRP and DAB (C-0010) staining.

$Paraformaldehyde-fixed, paraffin embedded Rat Kidney; Antigen retrieval by boiling in sodium citrate buffer (pH6.0) for 15 min; The section was incubated with TOMM20 Antibody, Unconjugated (bs-7357R) at 1:200 overnight at 4\u00b0C. Followed by conjugated Goat Anti-Rabbit IgG antibody (Green, bs-0295G-BF488), DAPI (blue, C02-04002) was used to stain the cell nuclei.$

Paraformaldehyde-fixed, paraffin embedded Rat Kidney; Antigen retrieval by boiling in sodium citrate buffer (pH6.0) for 15 min; The section was incubated with TOMM20 Antibody, Unconjugated (bs-7357R) at 1:200 overnight at 4\u00b0C. Followed by conjugated Goat Anti-Rabbit IgG antibody (Green, bs-0295G-BF488), DAPI (blue, C02-04002) was used to stain the cell nuclei.

$Paraformaldehyde-fixed, paraffin embedded Mouse Kidney; Antigen retrieval by boiling in sodium citrate buffer (pH6.0) for 15 min; The section was incubated with TOMM20 Antibody, Unconjugated (bs-7357R) at 1:200 overnight at 4\u00b0C. Followed by conjugated Goat Anti-Rabbit IgG antibody (Green, bs-0295G-BF488), DAPI (blue, C02-04002) was used to stain the cell nuclei.$

Paraformaldehyde-fixed, paraffin embedded Mouse Kidney; Antigen retrieval by boiling in sodium citrate buffer (pH6.0) for 15 min; The section was incubated with TOMM20 Antibody, Unconjugated (bs-7357R) at 1:200 overnight at 4\u00b0C. Followed by conjugated Goat Anti-Rabbit IgG antibody (Green, bs-0295G-BF488), DAPI (blue, C02-04002) was used to stain the cell nuclei.

$Paraformaldehyde-fixed, paraffin embedded Human Kidney; Antigen retrieval by boiling in sodium citrate buffer (pH6.0) for 15 min; The section was incubated with TOMM20 Antibody, Unconjugated (bs-7357R) at 1:200 overnight at 4\u00b0C. Followed by conjugated Goat Anti-Rabbit IgG antibody (Green, bs-0295G-BF488), DAPI (blue, C02-04002) was used to stain the cell nuclei.$

Paraformaldehyde-fixed, paraffin embedded Human Kidney; Antigen retrieval by boiling in sodium citrate buffer (pH6.0) for 15 min; The section was incubated with TOMM20 Antibody, Unconjugated (bs-7357R) at 1:200 overnight at 4\u00b0C. Followed by conjugated Goat Anti-Rabbit IgG antibody (Green, bs-0295G-BF488), DAPI (blue, C02-04002) was used to stain the cell nuclei.

$Paraformaldehyde-fixed, paraffin embedded Human Small Intestine; Antigen retrieval by boiling in sodium citrate buffer (pH6.0) for 15 min; The section was incubated with TOMM20 Antibody, Unconjugated (bs-7357R) at 1:200 overnight at 4\u00b0C. Followed by conjugated Goat Anti-Rabbit IgG antibody (Green, bs-0295G-BF488), DAPI (blue, C02-04002) was used to stain the cell nuclei.$

Paraformaldehyde-fixed, paraffin embedded Human Small Intestine; Antigen retrieval by boiling in sodium citrate buffer (pH6.0) for 15 min; The section was incubated with TOMM20 Antibody, Unconjugated (bs-7357R) at 1:200 overnight at 4\u00b0C. Followed by conjugated Goat Anti-Rabbit IgG antibody (Green, bs-0295G-BF488), DAPI (blue, C02-04002) was used to stain the cell nuclei.

$Paraformaldehyde-fixed, paraffin embedded Human Lung Cancer; Antigen retrieval by boiling in sodium citrate buffer (pH6.0) for 15 min; The section was incubated with TOMM20 Antibody, Unconjugated (bs-7357R) at 1:200 overnight at 4\u00b0C. Followed by conjugated Goat Anti-Rabbit IgG antibody (Green, bs-0295G-BF488), DAPI (blue, C02-04002) was used to stain the cell nuclei.$

Paraformaldehyde-fixed, paraffin embedded Human Lung Cancer; Antigen retrieval by boiling in sodium citrate buffer (pH6.0) for 15 min; The section was incubated with TOMM20 Antibody, Unconjugated (bs-7357R) at 1:200 overnight at 4\u00b0C. Followed by conjugated Goat Anti-Rabbit IgG antibody (Green, bs-0295G-BF488), DAPI (blue, C02-04002) was used to stain the cell nuclei.

$Paraformaldehyde-fixed, paraffin embedded Human Cervical Cancer; Antigen retrieval by boiling in sodium citrate buffer (pH6.0) for 15 min; The section was incubated with TOMM20 Antibody, Unconjugated (bs-7357R) at 1:200 overnight at 4\u00b0C. Followed by conjugated Goat Anti-Rabbit IgG antibody (Green, bs-0295G-BF488), DAPI (blue, C02-04002) was used to stain the cell nuclei.$

Paraformaldehyde-fixed, paraffin embedded Human Cervical Cancer; Antigen retrieval by boiling in sodium citrate buffer (pH6.0) for 15 min; The section was incubated with TOMM20 Antibody, Unconjugated (bs-7357R) at 1:200 overnight at 4\u00b0C. Followed by conjugated Goat Anti-Rabbit IgG antibody (Green, bs-0295G-BF488), DAPI (blue, C02-04002) was used to stain the cell nuclei.

$Paraformaldehyde-fixed, paraffin embedded Human Ovarian Cancer; Antigen retrieval by boiling in sodium citrate buffer (pH6.0) for 15 min; The section was incubated with TOMM20 Antibody, Unconjugated (bs-7357R) at 1:200 overnight at 4\u00b0C. Followed by conjugated Goat Anti-Rabbit IgG antibody (Green, bs-0295G-BF488), DAPI (blue, C02-04002) was used to stain the cell nuclei.$

Paraformaldehyde-fixed, paraffin embedded Human Ovarian Cancer; Antigen retrieval by boiling in sodium citrate buffer (pH6.0) for 15 min; The section was incubated with TOMM20 Antibody, Unconjugated (bs-7357R) at 1:200 overnight at 4\u00b0C. Followed by conjugated Goat Anti-Rabbit IgG antibody (Green, bs-0295G-BF488), DAPI (blue, C02-04002) was used to stain the cell nuclei.

Applications

WB
ELISA
IHC-P
IHC-F
IF

Reactivity

Human
Mouse
Rat

Predicted Reactivity

Cow
Sheep
Horse
Chicken
Rabbit

Overview
Catalog #	bs-7357r
Product Name	TOMM20 Polyclonal Antibody
Applications	WB ELISA IHC-P IHC-F IF
Reactivity	Human, Mouse, Rat
Predicted Reactivity	Cow, Sheep, Horse, Chicken, Rabbit
Specifications
Conjugation	Unconjugated
Host	Rabbit
Source	KLH conjugated synthetic peptide derived from human TOM20
Clonality	Polyclonal
Isotype	IgG
Concentration	1mg/ml
Purification	purified by Protein A.
Storage Buffer	0.01M TBS (pH7.4) with 1% BSA, 0.02% Proclin300 and 50% Glycerol.
Storage Condition	Shipped at 4C. Store at -20C for one year. Avoid repeated freeze/thaw cycles.
Target
Gene ID	9804
Swiss Prot	Q15388
Subcellular location	Cytoplasm
Synonyms	MAS20; MOM19; TOM20; 1810060K07Rik; Gm19268; mKIAA0016; TOM20_HUMAN; TOMM20; Mitochondrial 20 kDa outer membrane protein; Outer mitochondrial membrane receptor Tom20; KIAA0016; TOM20_MOUSE; TOM20_RAT; translocase of outer mitochondrial membrane 20; translocase of outer mitochondrial membrane 20 homolog (yeast); translocase of outer mitochondrial membrane 20 homolog type II
Background	Central component of the receptor complex responsible for the recognition and translocation of cytosolically synthesized mitochondrial preproteins. Together with TOM22 functions as the transit peptide receptor at the surface of the mitochondrion outer membrane and facilitates the movement of preproteins into the TOM40 translocation pore.
Application Dilution
WB	=1:500-2000
ELISA	ELISA=1:5000-10000
IHC-P	IHC-P=1:100-500
IHC-F	IHC-F=1:100-500
IF	IF=1:100-500
