PDPK1 Recombinant Antibody

$IF(ICC) staining with PDK1 (2F9) Monoclonal Antibody (bsm-54037R) at 1:100 in Hela cells (green). The nuclear counterstain is DAPI (blue). Cells were fixed in paraformaldehyde, permeabilized with 0.25% Triton X100\/PBS.$

IF(ICC) staining with PDK1 (2F9) Monoclonal Antibody (bsm-54037R) at 1:100 in Hela cells (green). The nuclear counterstain is DAPI (blue). Cells were fixed in paraformaldehyde, permeabilized with 0.25% Triton X100\/PBS.

$IF(ICC) staining with PDK1 (2F9) Monoclonal Antibody (bsm-54037R) at 1:100 in NIH-3T3 cells (green). The nuclear counterstain is DAPI (blue). Cells were fixed in paraformaldehyde, permeabilized with 0.25% Triton X100\/PBS.$

IF(ICC) staining with PDK1 (2F9) Monoclonal Antibody (bsm-54037R) at 1:100 in NIH-3T3 cells (green). The nuclear counterstain is DAPI (blue). Cells were fixed in paraformaldehyde, permeabilized with 0.25% Triton X100\/PBS.

$Paraformaldehyde-fixed and paraffin-embedded Human Kidney tissue incubated with PDK1 (2F9) Monoclonal Antibody (bsm-54037R) at 1:100, overnight at 4\u00b0C, followed by a conjugated secondary antibody and DAB staining. Counterstained with hematoxylin.$

Paraformaldehyde-fixed and paraffin-embedded Human Kidney tissue incubated with PDK1 (2F9) Monoclonal Antibody (bsm-54037R) at 1:100, overnight at 4\u00b0C, followed by a conjugated secondary antibody and DAB staining. Counterstained with hematoxylin.

$Paraformaldehyde-fixed and paraffin-embedded Mouse Heart tissue incubated with PDK1 (2F9) Monoclonal Antibody (bsm-54037R) at 1:100, overnight at 4\u00b0C, followed by a conjugated secondary antibody and DAB staining. Counterstained with hematoxylin.$

Paraformaldehyde-fixed and paraffin-embedded Mouse Heart tissue incubated with PDK1 (2F9) Monoclonal Antibody (bsm-54037R) at 1:100, overnight at 4\u00b0C, followed by a conjugated secondary antibody and DAB staining. Counterstained with hematoxylin.

Flow cytometric analysis of NIH-3T3 cells with PDK1 (2F9) Monoclonal Antibody (bsm-54037R) at 1:100 dilution (red) compared with an unlabeled control (cells without incubation with primary antibody; black).

$Paraformaldehyde-fixed, paraffin embedded Human kidney; Antigen retrieval by boiling in sodium citrate buffer (pH6.0) for 15min; Block endogenous peroxidase by 3% hydrogen peroxide for 20 minutes; Blocking buffer (normal goat serum) at 37\u00b0C for 30min; Antibody incubation with PDK1 (2F9) Monoclonal Antibody, Unconjugated (bsm-54037R) at 1:200 overnight at 4\u00b0C, DAB staining.$

Paraformaldehyde-fixed, paraffin embedded Human kidney; Antigen retrieval by boiling in sodium citrate buffer (pH6.0) for 15min; Block endogenous peroxidase by 3% hydrogen peroxide for 20 minutes; Blocking buffer (normal goat serum) at 37\u00b0C for 30min; Antibody incubation with PDK1 (2F9) Monoclonal Antibody, Unconjugated (bsm-54037R) at 1:200 overnight at 4\u00b0C, DAB staining.

$Paraformaldehyde-fixed, paraffin embedded Human heart; Antigen retrieval by boiling in sodium citrate buffer (pH6.0) for 15min; Block endogenous peroxidase by 3% hydrogen peroxide for 20 minutes; Blocking buffer (normal goat serum) at 37\u00b0C for 30min; Antibody incubation with PDK1 (2F9) Monoclonal Antibody, Unconjugated (bsm-54037R) at 1:200 overnight at 4\u00b0C, DAB staining.$

Paraformaldehyde-fixed, paraffin embedded Human heart; Antigen retrieval by boiling in sodium citrate buffer (pH6.0) for 15min; Block endogenous peroxidase by 3% hydrogen peroxide for 20 minutes; Blocking buffer (normal goat serum) at 37\u00b0C for 30min; Antibody incubation with PDK1 (2F9) Monoclonal Antibody, Unconjugated (bsm-54037R) at 1:200 overnight at 4\u00b0C, DAB staining.

$4% Paraformaldehyde-fixed HeLa (H) cell; Triton X-100 at r.t. for 20 min; Antibody incubation with (PDPK1) monoclonal Antibody, unconjugated (bsm-54037R) 1:100, 90 min at 37\u00b0C; followed by BF488 conjugated Goat Anti-Rabbit IgG antibody (green, bs-60295G-BF488) at 37\u00b0C for 90 min, DAPI (blue, C02-04002) was used to stain the cell nuclei. PBS instead of the primary antibody was used as the blank control.$

4% Paraformaldehyde-fixed HeLa (H) cell; Triton X-100 at r.t. for 20 min; Antibody incubation with (PDPK1) monoclonal Antibody, unconjugated (bsm-54037R) 1:100, 90 min at 37\u00b0C; followed by BF488 conjugated Goat Anti-Rabbit IgG antibody (green, bs-60295G-BF488) at 37\u00b0C for 90 min, DAPI (blue, C02-04002) was used to stain the cell nuclei. PBS instead of the primary antibody was used as the blank control.

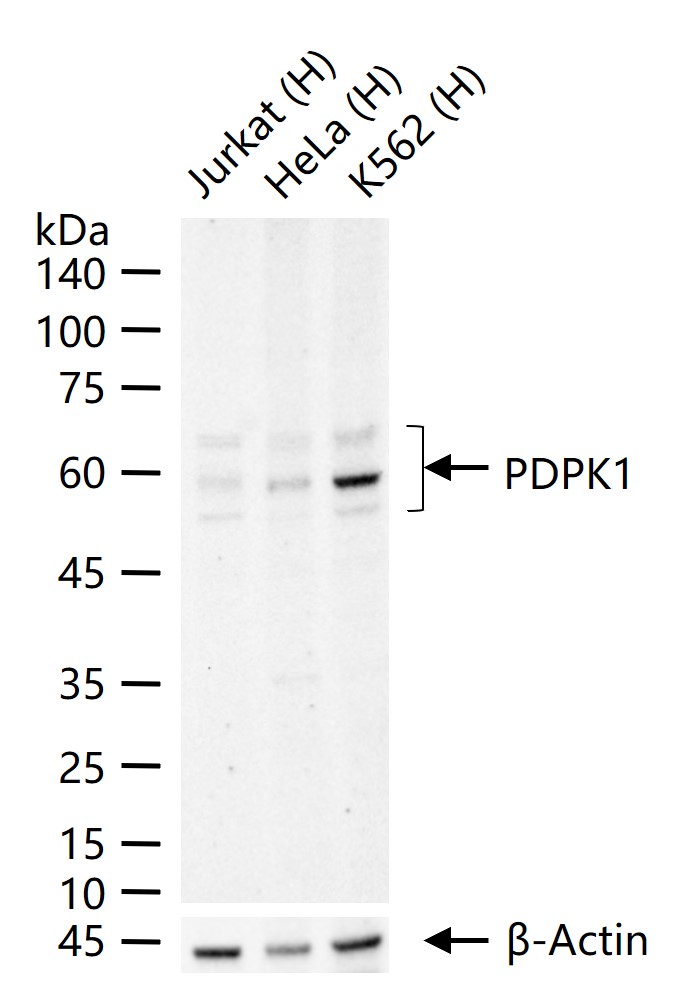

$25 ug total protein per lane of various lysates (see on figure) probed with PDPK1 monoclonal antibody, unconjugated (bsm-54037R) at 1:1000 dilution and 4\u00b0C overnight incubation. Followed by conjugated secondary antibody incubation at r.t. for 60 min.$

25 ug total protein per lane of various lysates (see on figure) probed with PDPK1 monoclonal antibody, unconjugated (bsm-54037R) at 1:1000 dilution and 4\u00b0C overnight incubation. Followed by conjugated secondary antibody incubation at r.t. for 60 min.

Applications

WB
IHC-P
IHC-F
IF
Flow-Cyt
ICC/IF

Reactivity

Human

Predicted Reactivity

Mouse
Rat

Overview
Catalog #	bsm-54037r
Product Name	PDPK1 Recombinant Antibody
Applications	WB IHC-P IHC-F IF FLOW-CYT ICC/IF
Reactivity	Human
Predicted Reactivity	Mouse, Rat
Specifications
Conjugation	Unconjugated
Host	Rabbit
Source	KLH conjugated synthetic peptide derived from human PDK1
Clonality	Recombinant
Clone #	2F9
Isotype	IgG
Concentration	Lot Dependent
Purification	purified by Protein A.
Storage Buffer	0.01M TBS (pH7.4) with 1% BSA, 0.02% Proclin300 and 50% Glycerol.
Storage Condition	Shipped at 4C. Store at -20C for one year. Avoid repeated freeze/thaw cycles.
Target
Gene ID	5170
Swiss Prot	O15530
Subcellular location	Cytoplasm, Cell membrane
Synonyms	PDK1; PDPK2; PDPK2P; PRO0461; PDPK1_HUMAN; PDPK1; hPDK1; 2.7.11.1; PDPK1_MOUSE; mPDK1; PDPK1_RAT; Protein kinase B kinase (PkB kinase); 3-phosphoinositide dependent protein kinase 1; PkB kinase
Background	Mitochondrial pyruvate dehydrogenase (PDH) catalyzes the oxidative decarboxylation of pyruvate and plays a central role in the regulation of homeostasis of carbohydrate fuels in mammals. PDH activity is controlled by a phosphorylation/dephosphorylation cycle, phosphorylation leading to inactivation and dephosphorylation leading to reactivation of PDH. The phosphorylation of PDH is catalyzed by pyruvate dehydrogenase kinase (PDK), the activity of which is stimulated by the products of PDH catalysis. PDK1 consists of alpha and beta subunits; the kinase activity resides in the alpha subunit. Three PDK isoenzymes have been identified in humans (PDK1, 2 and 3) and two have been identified in rodent (PDK1 and 2).
Application Dilution
WB	1:300-5000
IHC-P	1:200-400
IHC-F	1:100-500
IF
Flow-Cyt	1ug/Test
ICC/IF	1:50-100
