IRF5 Recombinant Antibody

4% Paraformaldehyde-fixed THP-1 (H) cell; Triton X-100 at r.t. for 20 min; Antibody incubation with (IRF5) monoclonal Antibody, unconjugated (bsm-52117R) 1:100, 90 min at 37\u00b0C; followed by conjugated Goat Anti-Rabbit IgG antibody (green, bs-60295G-BF488) at 37\u00b0C for 90 min, DAPI (blue, C02-04002) was used to stain the cell nuclei. PBS instead of the primary antibody was used as the blank control.
4% Paraformaldehyde-fixed THP-1 (H) cell; Triton X-100 at r.t. for 20 min; Antibody incubation with (IRF5) monoclonal Antibody, unconjugated (bsm-52117R) 1:100, 90 min at 37\u00b0C; followed by conjugated Goat Anti-Rabbit IgG antibody (green, bs-60295G-BF488) at 37\u00b0C for 90 min, DAPI (blue, C02-04002) was used to stain the cell nuclei. PBS instead of the primary antibody was used as the blank control.

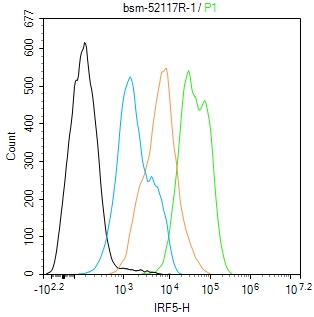

The THP-1 (H) cells were fixed with 4% PFA (10 min at r.t.) and then permeabilized with 90% ice-cold methanol for 20 min at -20\u2103,the cells then were incubated in 5%BSA to block non-specific protein-protein interactions (30 min at r.t.).Primary Antibody (green):Rabbit Anti-IRF5 antibody (bsm-52117R,1:100); Secondary Antibody (white blue): Goat anti-Rabbit IgG-BF488 (bs-60295G-BF488): 1 \u03bcg\/test. Isotype Control (orange): Rabbit IgG (bs-0295P). Blank control (black): PBS. Acquisition of 20,000 events was performed.
The THP-1 (H) cells were fixed with 4% PFA (10 min at r.t.) and then permeabilized with 90% ice-cold methanol for 20 min at -20\u2103,the cells then were incubated in 5%BSA to block non-specific protein-protein interactions (30 min at r.t.).Primary Antibody (green):Rabbit Anti-IRF5 antibody (bsm-52117R,1:100); Secondary Antibody (white blue): Goat anti-Rabbit IgG-BF488 (bs-60295G-BF488): 1 \u03bcg\/test. Isotype Control (orange): Rabbit IgG (bs-0295P). Blank control (black): PBS. Acquisition of 20,000 events was performed.

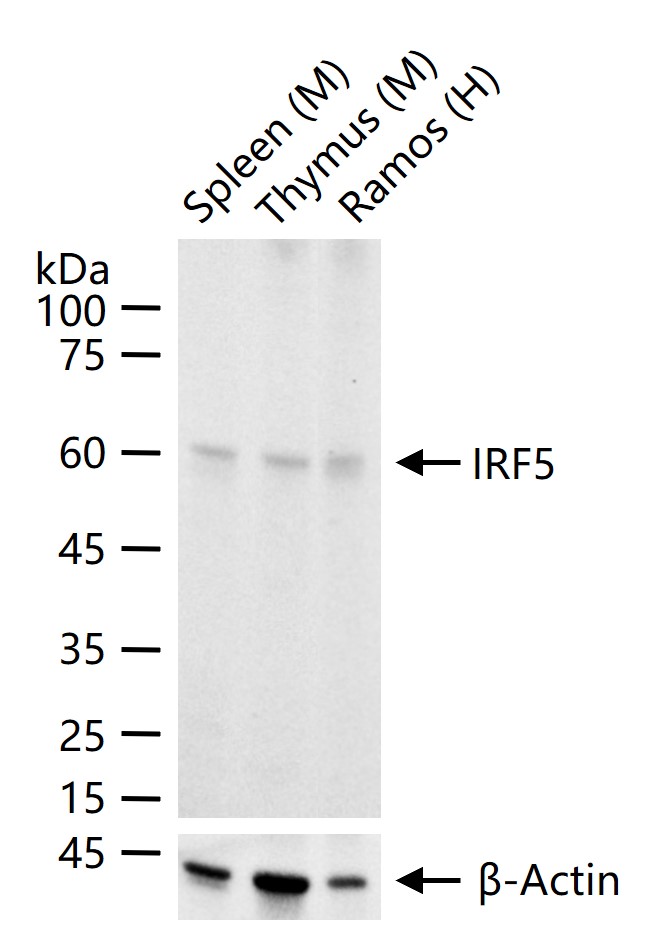

25 ug total protein per lane of various lysates (see on figure) probed with IRF5 monoclonal antibody, unconjugated (bsm-52117R) at 1:1000 dilution and 4\u00b0C overnight incubation. Followed by conjugated secondary antibody incubation at r.t. for 60 min.
25 ug total protein per lane of various lysates (see on figure) probed with IRF5 monoclonal antibody, unconjugated (bsm-52117R) at 1:1000 dilution and 4\u00b0C overnight incubation. Followed by conjugated secondary antibody incubation at r.t. for 60 min.
Paraformaldehyde-fixed, paraffin embedded Mouse Spleen; Antigen retrieval by boiling in sodium citrate buffer (pH6.0) for 15 min; The section was incubated with IRF5 Monoclonal Antibody, Unconjugated (bsm-52117R) at 1:200 overnight at 4\u00b0C, followed by conjugation to the bs-0295G-HRP and DAB (C-0010) staining.
Paraformaldehyde-fixed, paraffin embedded Mouse Spleen; Antigen retrieval by boiling in sodium citrate buffer (pH6.0) for 15 min; The section was incubated with IRF5 Monoclonal Antibody, Unconjugated (bsm-52117R) at 1:200 overnight at 4\u00b0C, followed by conjugation to the bs-0295G-HRP and DAB (C-0010) staining.
Paraformaldehyde-fixed, paraffin embedded Rat Spleen; Antigen retrieval by boiling in sodium citrate buffer (pH6.0) for 15 min; The section was incubated with IRF5 Monoclonal Antibody, Unconjugated (bsm-52117R) at 1:200 overnight at 4\u00b0C, followed by conjugation to the bs-0295G-HRP and DAB (C-0010) staining.
Paraformaldehyde-fixed, paraffin embedded Rat Spleen; Antigen retrieval by boiling in sodium citrate buffer (pH6.0) for 15 min; The section was incubated with IRF5 Monoclonal Antibody, Unconjugated (bsm-52117R) at 1:200 overnight at 4\u00b0C, followed by conjugation to the bs-0295G-HRP and DAB (C-0010) staining.
Paraformaldehyde-fixed, paraffin embedded Mouse Thymus; Antigen retrieval by boiling in sodium citrate buffer (pH6.0) for 15 min; The section was incubated with IRF5 Monoclonal Antibody, Unconjugated (bsm-52117R) at 1:200 overnight at 4\u00b0C, followed by conjugation to the bs-0295G-HRP and DAB (C-0010) staining.
Paraformaldehyde-fixed, paraffin embedded Mouse Thymus; Antigen retrieval by boiling in sodium citrate buffer (pH6.0) for 15 min; The section was incubated with IRF5 Monoclonal Antibody, Unconjugated (bsm-52117R) at 1:200 overnight at 4\u00b0C, followed by conjugation to the bs-0295G-HRP and DAB (C-0010) staining.
Paraformaldehyde-fixed, paraffin embedded Rat Thymus; Antigen retrieval by boiling in sodium citrate buffer (pH6.0) for 15 min; The section was incubated with IRF5 Monoclonal Antibody, Unconjugated (bsm-52117R) at 1:200 overnight at 4\u00b0C, followed by conjugation to the bs-0295G-HRP and DAB (C-0010) staining.
Paraformaldehyde-fixed, paraffin embedded Rat Thymus; Antigen retrieval by boiling in sodium citrate buffer (pH6.0) for 15 min; The section was incubated with IRF5 Monoclonal Antibody, Unconjugated (bsm-52117R) at 1:200 overnight at 4\u00b0C, followed by conjugation to the bs-0295G-HRP and DAB (C-0010) staining.
Paraformaldehyde-fixed, paraffin embedded Human Lung Cancer; Antigen retrieval by boiling in sodium citrate buffer (pH6.0) for 15 min; The section was incubated with IRF5 Monoclonal Antibody, Unconjugated (bsm-52117R) at 1:200 overnight at 4\u00b0C, followed by conjugation to the bs-0295G-HRP and DAB (C-0010) staining.
Paraformaldehyde-fixed, paraffin embedded Human Lung Cancer; Antigen retrieval by boiling in sodium citrate buffer (pH6.0) for 15 min; The section was incubated with IRF5 Monoclonal Antibody, Unconjugated (bsm-52117R) at 1:200 overnight at 4\u00b0C, followed by conjugation to the bs-0295G-HRP and DAB (C-0010) staining.
Paraformaldehyde-fixed, paraffin embedded Human lung squamous cell carcinoma; Antigen retrieval by boiling in sodium citrate buffer (pH6.0) for 15 min; The section was incubated with IRF5 Monoclonal Antibody, Unconjugated (bsm-52117R) at 1:200 overnight at 4\u00b0C, followed by conjugation to the bs-0295G-HRP and DAB (C-0010) staining.
Paraformaldehyde-fixed, paraffin embedded Human lung squamous cell carcinoma; Antigen retrieval by boiling in sodium citrate buffer (pH6.0) for 15 min; The section was incubated with IRF5 Monoclonal Antibody, Unconjugated (bsm-52117R) at 1:200 overnight at 4\u00b0C, followed by conjugation to the bs-0295G-HRP and DAB (C-0010) staining.
Paraformaldehyde-fixed, paraffin embedded Human Ovarian Cancer; Antigen retrieval by boiling in sodium citrate buffer (pH6.0) for 15 min; The section was incubated with IRF5 Monoclonal Antibody, Unconjugated (bsm-52117R) at 1:200 overnight at 4\u00b0C, followed by conjugation to the bs-0295G-HRP and DAB (C-0010) staining.
Paraformaldehyde-fixed, paraffin embedded Human Ovarian Cancer; Antigen retrieval by boiling in sodium citrate buffer (pH6.0) for 15 min; The section was incubated with IRF5 Monoclonal Antibody, Unconjugated (bsm-52117R) at 1:200 overnight at 4\u00b0C, followed by conjugation to the bs-0295G-HRP and DAB (C-0010) staining.
Bioss unconjugated antibody vial

Applications

  • WB
  • IHC-P
  • IHC-F
  • IF
  • Flow-Cyt
  • ICC/IF

Reactivity

  • Human
  • Mouse
  • Rat
Overview
Catalog # bsm-52117r-20uL
Product Name IRF5 Recombinant Antibody
Applications
WB IHC-P IHC-F IF FLOW-CYT ICC/IF
Reactivity Human, Mouse, Rat
Specifications
Conjugation Unconjugated
Host Rabbit
Source Recombinant human IRF5 protein, around N-terminal 1-200aa.
Clonality Recombinant
Isotype IgG
Concentration Lot Dependent
Purification Purified by Protein A.
Storage Buffer 0.01M TBS (pH 7.4), 1% BSA, 0.02% Proclin 300, and 50% Glycerol
Storage Condition Shipped at 4C. Store at -20C for one year. Avoid repeated freeze/thaw cycles.
Target
Gene ID 3663
Swiss Prot Q13568
Synonyms Interferon regulatory factor 5; IRF5
Background Transcription factor involved in the induction of interferons IFNA and INFB and inflammatory cytokines upon virus infection. Activated by TLR7 or TLR8 signaling.
Application Dilution
WB 1:300-5000
IHC-P 1:200-400
IHC-F 1:100-500
IF
Flow-Cyt 1ug/Test
ICC/IF 1:50-100

Frequently asked questions

Which applications is IRF5 Recombinant Antibody (bsm-52117R) validated for, and at what dilution?

bsm-52117R is validated for WB (1:300-5000); IHC-P (1:200-400); IHC-F (1:100-500); IF; Flow-Cyt (1ug/Test); ICC/IF (1:50-100). These are recommended starting dilutions; optimal dilutions should be determined by the end user.

Which species does IRF5 Recombinant Antibody (bsm-52117R) react with?

Tested reactivity: Human, Mouse, Rat.

How should bsm-52117R be stored?

Shipped at 4C. Store at -20C for one year. Avoid repeated freeze/thaw cycles. Storage buffer: 0.01M TBS (pH 7.4), 1% BSA, 0.02% Proclin 300, and 50% Glycerol

What immunogen was used to raise IRF5 Recombinant Antibody (bsm-52117R)?

Recombinant human IRF5 protein, around N-terminal 1-200aa.
