HLA-DR (32G3) Monoclonal Antibody

Flow cytometric analysis of Jurkat cells with HLA-DR (32G3) Monoclonal Antibody (bsm-52535R) at 1:50 dilution (red) compared with an unlabeled control (cells without incubation with primary antibody; black).

$Daudi cell lysate probed with HLA-DR (32G3) Monoclonal Antibody (bsm-52535R) at 1:1000 overnight at 4\u00b0C followed by a conjugated secondary antibody for 60 minutes at 37\u00b0C.$

Daudi cell lysate probed with HLA-DR (32G3) Monoclonal Antibody (bsm-52535R) at 1:1000 overnight at 4\u00b0C followed by a conjugated secondary antibody for 60 minutes at 37\u00b0C.

$IF(ICC) staining with HLA-DR (32G3) Monoclonal Antibody (bsm-52535R) at 1:100 in HeLa cells (green). The nuclear counterstain is DAPI (blue). Cells were fixed in paraformaldehyde, permeabilized with 0.25% Triton X100\/PBS.$

IF(ICC) staining with HLA-DR (32G3) Monoclonal Antibody (bsm-52535R) at 1:100 in HeLa cells (green). The nuclear counterstain is DAPI (blue). Cells were fixed in paraformaldehyde, permeabilized with 0.25% Triton X100\/PBS.

$IF(ICC) staining with HLA-DR (32G3) Monoclonal Antibody (bsm-52535R) at 1:100 in B16-F1 cells (green). The nuclear counterstain is DAPI (blue). Cells were fixed in paraformaldehyde, permeabilized with 0.25% Triton X100\/PBS.$

IF(ICC) staining with HLA-DR (32G3) Monoclonal Antibody (bsm-52535R) at 1:100 in B16-F1 cells (green). The nuclear counterstain is DAPI (blue). Cells were fixed in paraformaldehyde, permeabilized with 0.25% Triton X100\/PBS.

$Paraformaldehyde-fixed and paraffin-embedded Human tonsil tissue incubated with HLA-DR (32G3) Monoclonal Antibody (bsm-52535R) at 1:100, overnight at 4\u00b0C, followed by a conjugated secondary antibody and DAB staining. Counterstained with hematoxylin.$

Paraformaldehyde-fixed and paraffin-embedded Human tonsil tissue incubated with HLA-DR (32G3) Monoclonal Antibody (bsm-52535R) at 1:100, overnight at 4\u00b0C, followed by a conjugated secondary antibody and DAB staining. Counterstained with hematoxylin.

$Paraformaldehyde-fixed and paraffin-embedded Human kidney tissue incubated with HLA-DR (32G3) Monoclonal Antibody (bsm-52535R) at 1:100, overnight at 4\u00b0C, followed by a conjugated secondary antibody and DAB staining. Counterstained with hematoxylin.$

Paraformaldehyde-fixed and paraffin-embedded Human kidney tissue incubated with HLA-DR (32G3) Monoclonal Antibody (bsm-52535R) at 1:100, overnight at 4\u00b0C, followed by a conjugated secondary antibody and DAB staining. Counterstained with hematoxylin.

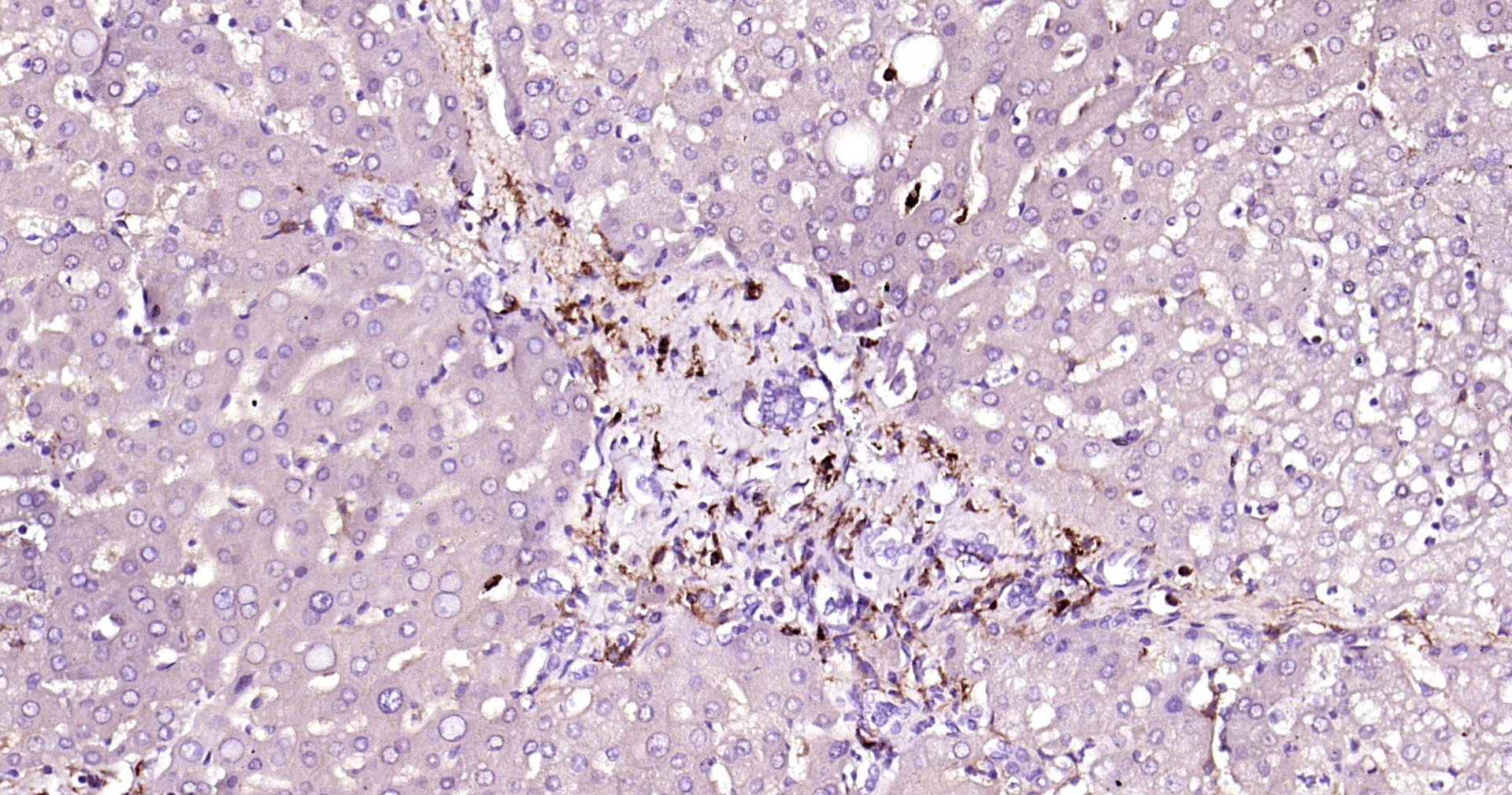

$Paraformaldehyde-fixed and paraffin-embedded Human liver tissue incubated with HLA-DR (32G3) Monoclonal Antibody (bsm-52535R) at 1:100, overnight at 4\u00b0C, followed by a conjugated secondary antibody and DAB staining. Counterstained with hematoxylin.$

Paraformaldehyde-fixed and paraffin-embedded Human liver tissue incubated with HLA-DR (32G3) Monoclonal Antibody (bsm-52535R) at 1:100, overnight at 4\u00b0C, followed by a conjugated secondary antibody and DAB staining. Counterstained with hematoxylin.

$Paraformaldehyde-fixed and paraffin-embedded Mouse kidney tissue incubated with HLA-DR (32G3) Monoclonal Antibody (bsm-52535R) at 1:100, overnight at 4\u00b0C, followed by a conjugated secondary antibody and DAB staining. Counterstained with hematoxylin.$

Paraformaldehyde-fixed and paraffin-embedded Mouse kidney tissue incubated with HLA-DR (32G3) Monoclonal Antibody (bsm-52535R) at 1:100, overnight at 4\u00b0C, followed by a conjugated secondary antibody and DAB staining. Counterstained with hematoxylin.

$Paraformaldehyde-fixed and paraffin-embedded Human spleen tissue incubated with HLA-DR (32G3) Monoclonal Antibody (bsm-52535R) at 1:100, overnight at 4\u00b0C, followed by a conjugated secondary antibody and DAB staining. Counterstained with hematoxylin.$

Paraformaldehyde-fixed and paraffin-embedded Human spleen tissue incubated with HLA-DR (32G3) Monoclonal Antibody (bsm-52535R) at 1:100, overnight at 4\u00b0C, followed by a conjugated secondary antibody and DAB staining. Counterstained with hematoxylin.

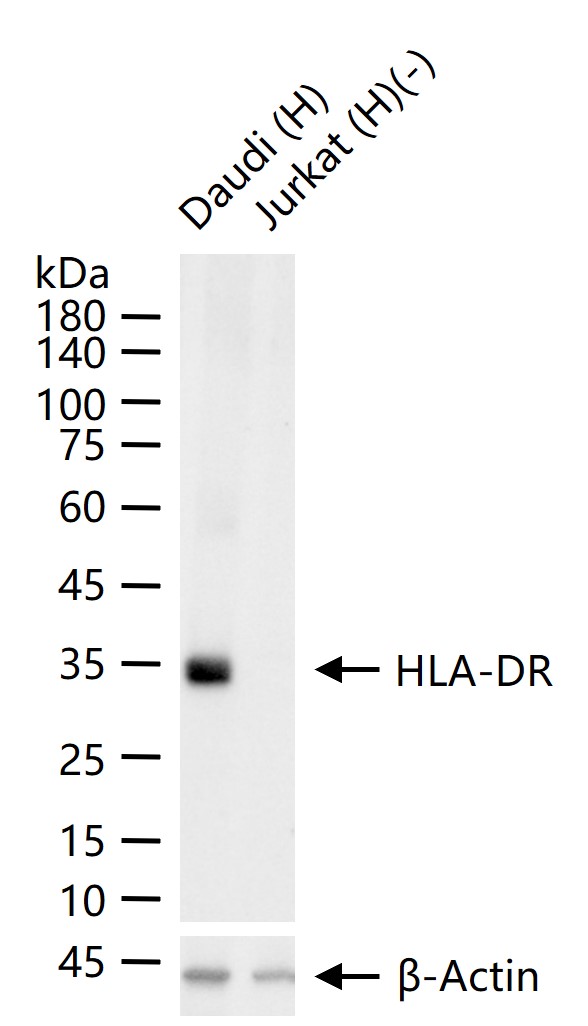

$Human Daudi cell lysates probed with HLA-DR Monoclonal Antibody, Unconjugated (bsm-52535R) at 1:500 dilution and 4\u00b0C overnight incubation. Followed by conjugated secondary antibody incubation at 1:20000 for 60 min at 37˚C.$

Human Daudi cell lysates probed with HLA-DR Monoclonal Antibody, Unconjugated (bsm-52535R) at 1:500 dilution and 4\u00b0C overnight incubation. Followed by conjugated secondary antibody incubation at 1:20000 for 60 min at 37˚C.

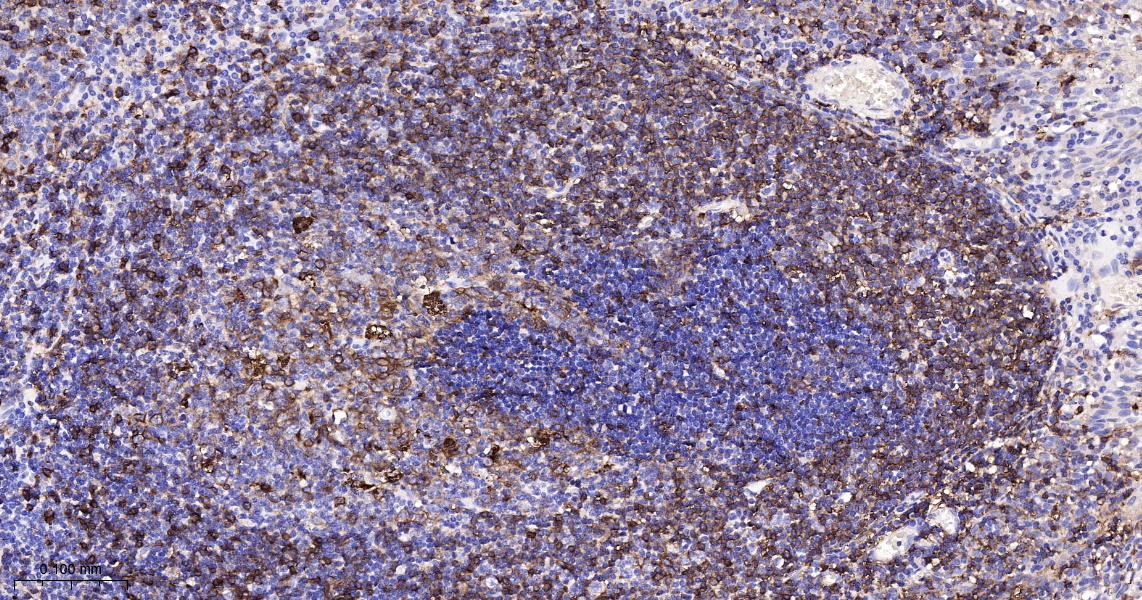

$Paraformaldehyde-fixed, paraffin embedded (human spleen); Antigen retrieval by boiling in sodium citrate buffer (pH6.0) for 15min; Block endogenous peroxidase by 3% hydrogen peroxide for 20 minutes; Blocking buffer (normal goat serum) at 37\u00b0C for 30min; Incubation with (HLA-DR (32G3)) Monoclonal Antibody, Unconjugated (bsm-52535R) at 1:200 overnight at 4\u00b0C, followed by operating according to SP Kit(Rabbit) (sp-0023) instructionsand DAB staining.$

Paraformaldehyde-fixed, paraffin embedded (human spleen); Antigen retrieval by boiling in sodium citrate buffer (pH6.0) for 15min; Block endogenous peroxidase by 3% hydrogen peroxide for 20 minutes; Blocking buffer (normal goat serum) at 37\u00b0C for 30min; Incubation with (HLA-DR (32G3)) Monoclonal Antibody, Unconjugated (bsm-52535R) at 1:200 overnight at 4\u00b0C, followed by operating according to SP Kit(Rabbit) (sp-0023) instructionsand DAB staining.

$Paraformaldehyde-fixed, paraffin embedded (human liver); Antigen retrieval by boiling in sodium citrate buffer (pH6.0) for 15min; Block endogenous peroxidase by 3% hydrogen peroxide for 20 minutes; Blocking buffer (normal goat serum) at 37\u00b0C for 30min; Incubation with (HLA-DR (32G3)) Monoclonal Antibody, Unconjugated (bsm-52535R) at 1:200 overnight at 4\u00b0C, followed by operating according to SP Kit(Rabbit) (sp-0023) instructionsand DAB staining.$

Paraformaldehyde-fixed, paraffin embedded (human liver); Antigen retrieval by boiling in sodium citrate buffer (pH6.0) for 15min; Block endogenous peroxidase by 3% hydrogen peroxide for 20 minutes; Blocking buffer (normal goat serum) at 37\u00b0C for 30min; Incubation with (HLA-DR (32G3)) Monoclonal Antibody, Unconjugated (bsm-52535R) at 1:200 overnight at 4\u00b0C, followed by operating according to SP Kit(Rabbit) (sp-0023) instructionsand DAB staining.

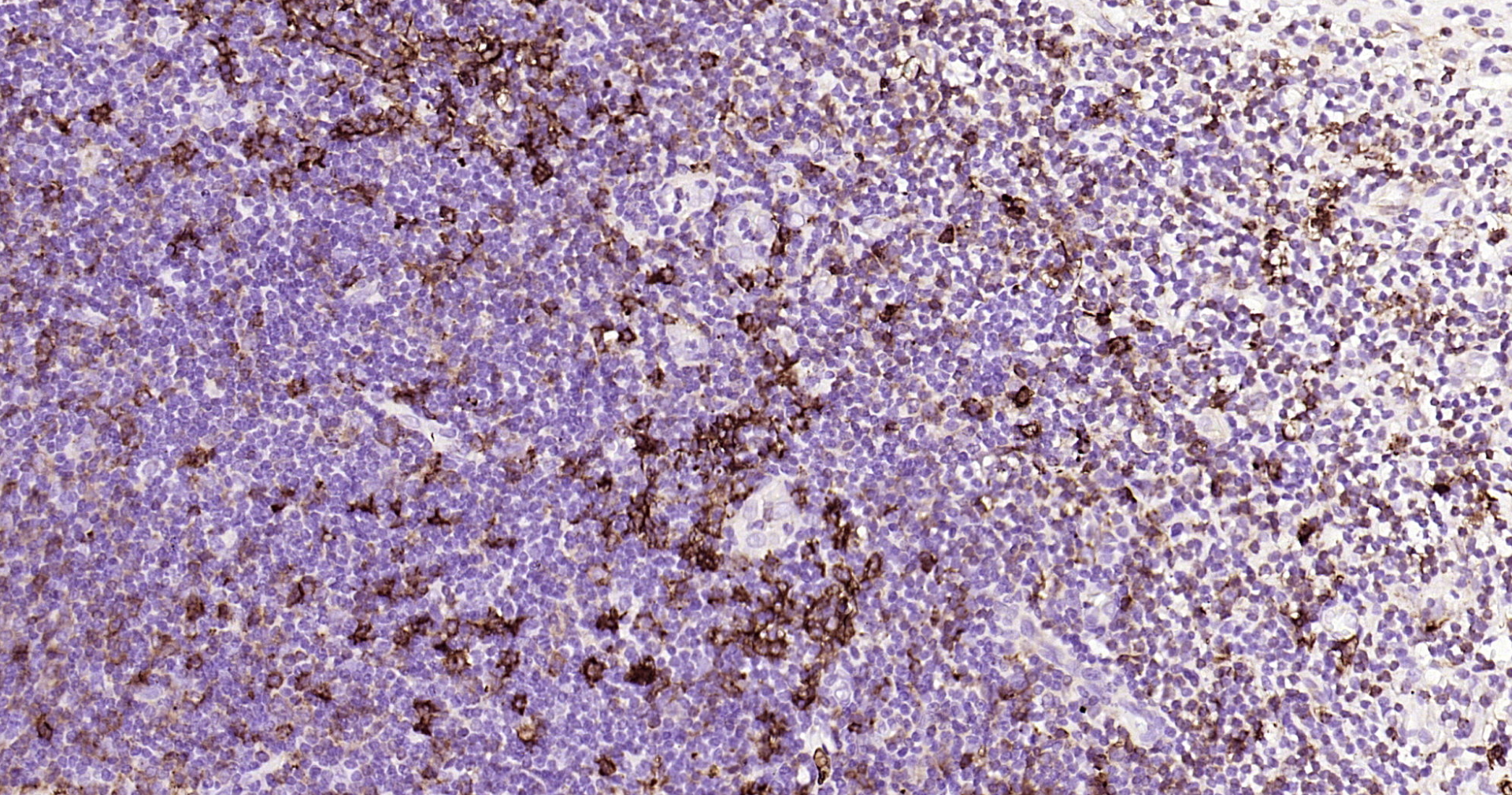

$Paraformaldehyde-fixed, paraffin embedded (human tonsil ); Antigen retrieval by boiling in sodium citrate buffer (pH6.0) for 15min; Block endogenous peroxidase by 3% hydrogen peroxide for 20 minutes; Blocking buffer (normal goat serum) at 37\u00b0C for 30min; Incubation with (HLA-DR (32G3)) Monoclonal Antibody, Unconjugated (bsm-52535R) at 1:200 overnight at 4\u00b0C, followed by operating according to SP Kit(Rabbit) (sp-0023) instructionsand DAB staining.$

Paraformaldehyde-fixed, paraffin embedded (human tonsil ); Antigen retrieval by boiling in sodium citrate buffer (pH6.0) for 15min; Block endogenous peroxidase by 3% hydrogen peroxide for 20 minutes; Blocking buffer (normal goat serum) at 37\u00b0C for 30min; Incubation with (HLA-DR (32G3)) Monoclonal Antibody, Unconjugated (bsm-52535R) at 1:200 overnight at 4\u00b0C, followed by operating according to SP Kit(Rabbit) (sp-0023) instructionsand DAB staining.

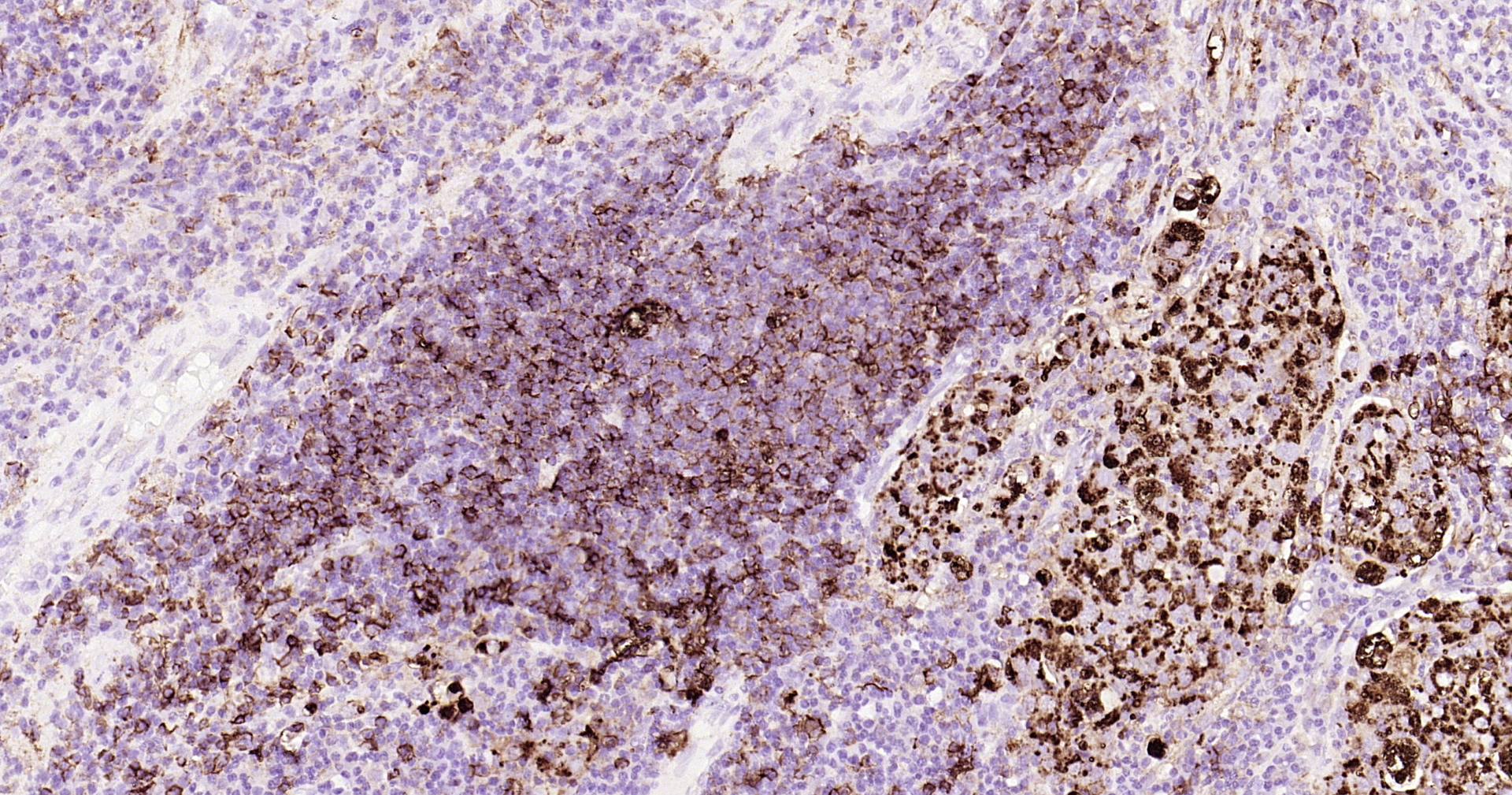

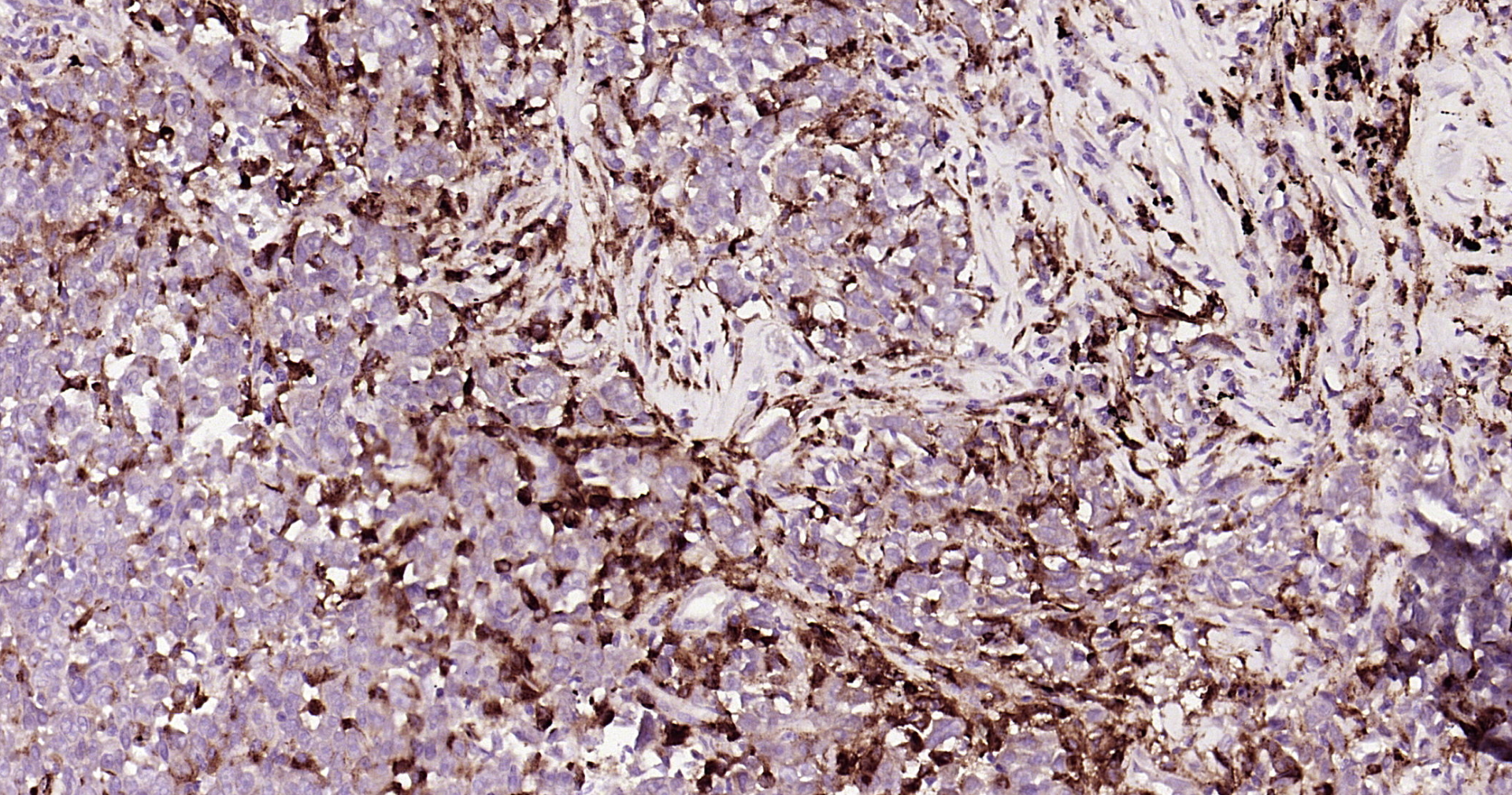

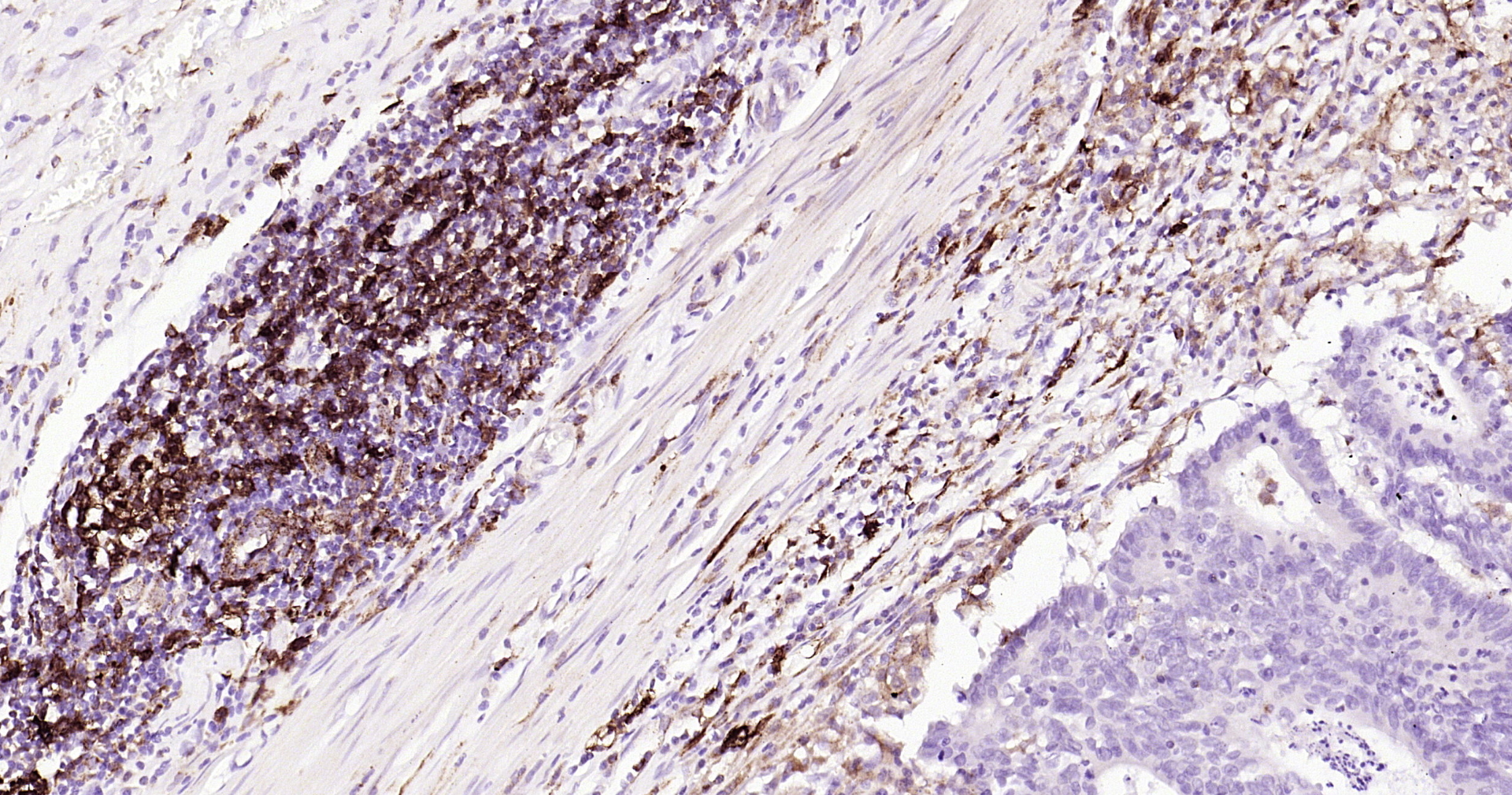

$Paraformaldehyde-fixed, paraffin embedded (human lung carcinoma); Antigen retrieval by boiling in sodium citrate buffer (pH6.0) for 15min; Block endogenous peroxidase by 3% hydrogen peroxide for 20 minutes; Blocking buffer (normal goat serum) at 37\u00b0C for 30min; Incubation with (HLA-DR (32G3)) Monoclonal Antibody, Unconjugated (bsm-52535R) at 1:200 overnight at 4\u00b0C, followed by operating according to SP Kit(Rabbit) (sp-0023) instructionsand DAB staining.$

Paraformaldehyde-fixed, paraffin embedded (human lung carcinoma); Antigen retrieval by boiling in sodium citrate buffer (pH6.0) for 15min; Block endogenous peroxidase by 3% hydrogen peroxide for 20 minutes; Blocking buffer (normal goat serum) at 37\u00b0C for 30min; Incubation with (HLA-DR (32G3)) Monoclonal Antibody, Unconjugated (bsm-52535R) at 1:200 overnight at 4\u00b0C, followed by operating according to SP Kit(Rabbit) (sp-0023) instructionsand DAB staining.

Applications

WB
FCM
IHC-P
IF(ICC)
IHC

Reactivity

Human
Mouse
Rat

Overview
Catalog #	bsm-52535R
Product Name	HLA-DR (32G3) Monoclonal Antibody
Applications	WB, FCM, IHC-P, IF(ICC), IHC
Reactivity	Human, Mouse, Rat
Specifications
Conjugation	Unconjugated
Host	Rabbit
Source	Recombinant human HLA-DR between 150-250 amino acids
Clonality	Monoclonal
Clone #	32G3
Isotype	IgG
Concentration	1ug/ul
Purification	Purified by Protein A.
Storage Buffer	Aqueous buffered solution containing 1xTBS (pH7.4), 1%BSA, 40%Glycerol and 0.05% Sodium Azide.
Storage Condition	Shipped at 4°C. Store at -20°C for one year. Avoid repeated freeze/thaw cycles.
Target
Gene ID	3122
Swiss Prot	P01903
Synonyms	HLA class II histocompatibility antigen, DR alpha chain, MHC class II antigen DRA, HLA-DRA
Background	Binds peptides derived from antigens that access the endocytic route of antigen presenting cells (APC) and presents them on the cell surface for recognition by the CD4 T-cells. The peptide binding cleft accommodates peptides of 10-30 residues. The peptides presented by MHC class II molecules are generated mostly by degradation of proteins that access the endocytic route, where they are processed by lysosomal proteases and other hydrolases. Exogenous antigens that have been endocytosed by the APC are thus readily available for presentation via MHC II molecules, and for this reason this antigen presentation pathway is usually referred to as exogenous. As membrane proteins on their way to degradation in lysosomes as part of their normal turn-over are also contained in the endosomal/lysosomal compartments, exogenous antigens must compete with those derived from endogenous components. Autophagy is also a source of endogenous peptides, autophagosomes constitutively fuse with MHC class II loading compartments. In addition to APCs, other cells of the gastrointestinal tract, such as epithelial cells, express MHC class II molecules and CD74 and act as APCs, which is an unusual trait of the GI tract. To produce a MHC class II molecule that presents an antigen, three MHC class II molecules (heterodimers of an alpha and a beta chain) associate with a CD74 trimer in the ER to form a heterononamer. Soon after the entry of this complex into the endosomal/lysosomal system where antigen processing occurs, CD74 undergoes a sequential degradation by various proteases, including CTSS and CTSL, leaving a small fragment termed CLIP (class-II-associated invariant chain peptide). The removal of CLIP is facilitated by HLA-DM via direct binding to the alpha-beta-CLIP complex so that CLIP is released. HLA-DM stabilizes MHC class II molecules until primary high affinity antigenic peptides are bound. The MHC II molecule bound to a peptide is then transported to the cell membrane surface.
Application Dilution
WB	1:300-5000
FCM	1:20-100
IHC-P	1:200-400
IF(ICC)	1:50-200
IHC
