CD3D (5C1) Monoclonal Antibody

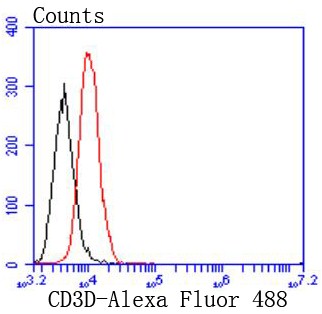

Flow cytometric analysis of Raji cells with CD3D (5C1) Monoclonal Antibody (bsm-52744R) at 1:50 dilution (red) compared with an unlabeled control (cells without incubation with primary antibody; black).

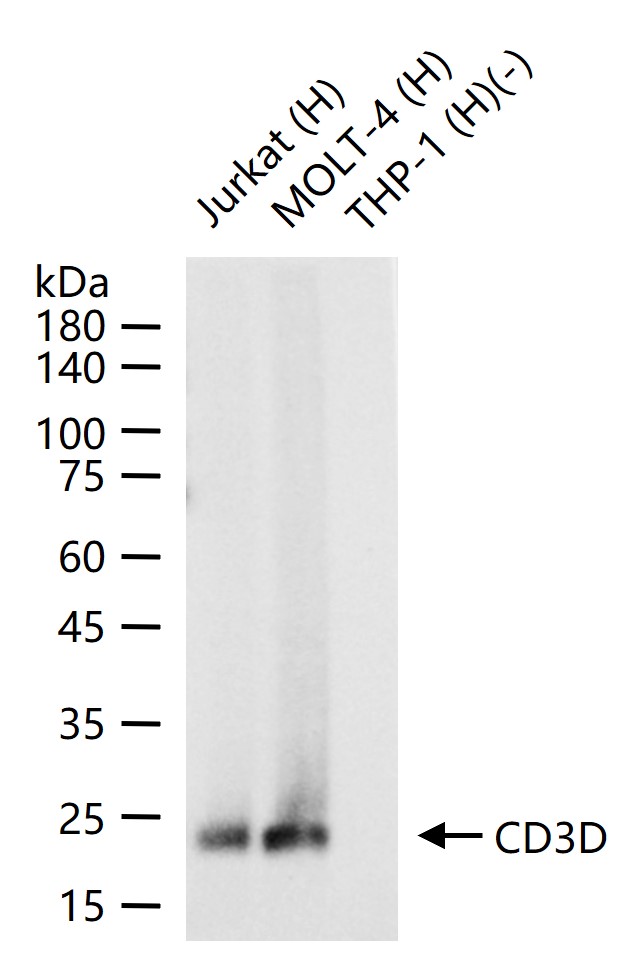

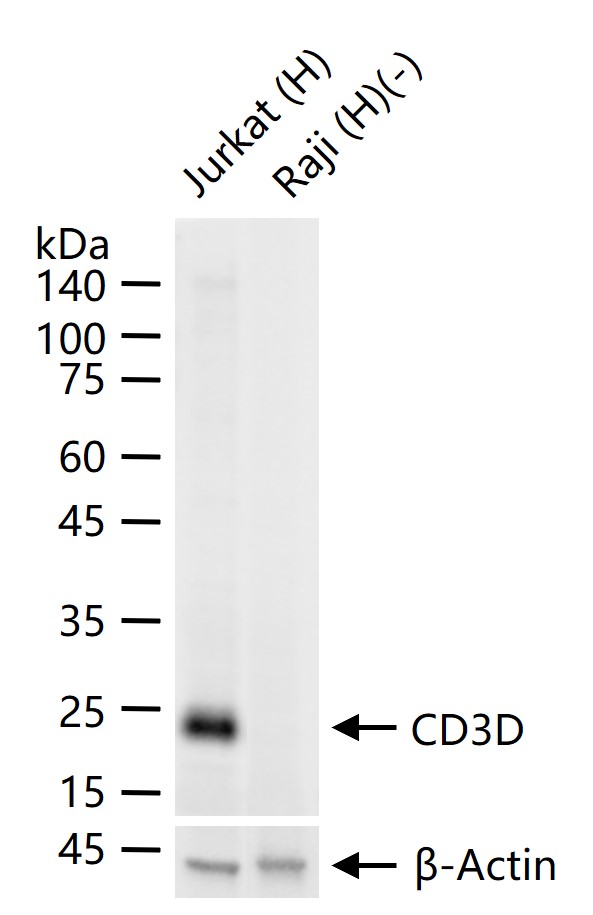

$Jurkat cell lysate probed with CD3D (5C1) Monoclonal Antibody (bsm-52744R) at 1:1000 overnight at 4\u00b0C followed by a conjugated secondary antibody for 60 minutes at 37\u00b0C.$

Jurkat cell lysate probed with CD3D (5C1) Monoclonal Antibody (bsm-52744R) at 1:1000 overnight at 4\u00b0C followed by a conjugated secondary antibody for 60 minutes at 37\u00b0C.

$IF(ICC) staining with CD3D (5C1) Monoclonal Antibody (bsm-52744R) at 1:300 in A431 cells (green). The nuclear counterstain is DAPI (blue). Cells were fixed in paraformaldehyde, permeabilized with 0.25% Triton X100\/PBS.$

IF(ICC) staining with CD3D (5C1) Monoclonal Antibody (bsm-52744R) at 1:300 in A431 cells (green). The nuclear counterstain is DAPI (blue). Cells were fixed in paraformaldehyde, permeabilized with 0.25% Triton X100\/PBS.

$IF(ICC) staining with CD3D (5C1) Monoclonal Antibody (bsm-52744R) at 1:300 in SW480 cells (green). The nuclear counterstain is DAPI (blue). Cells were fixed in paraformaldehyde, permeabilized with 0.25% Triton X100\/PBS.$

IF(ICC) staining with CD3D (5C1) Monoclonal Antibody (bsm-52744R) at 1:300 in SW480 cells (green). The nuclear counterstain is DAPI (blue). Cells were fixed in paraformaldehyde, permeabilized with 0.25% Triton X100\/PBS.

$Paraformaldehyde-fixed and paraffin-embedded Human tonsil tissue incubated with CD3D (5C1) Monoclonal Antibody (bsm-52744R) at 1:100, overnight at 4\u00b0C, followed by a conjugated secondary antibody and DAB staining. Counterstained with hematoxylin.$

Paraformaldehyde-fixed and paraffin-embedded Human tonsil tissue incubated with CD3D (5C1) Monoclonal Antibody (bsm-52744R) at 1:100, overnight at 4\u00b0C, followed by a conjugated secondary antibody and DAB staining. Counterstained with hematoxylin.

$Paraformaldehyde-fixed and paraffin-embedded Human spleen tissue incubated with CD3D (5C1) Monoclonal Antibody (bsm-52744R) at 1:100, overnight at 4\u00b0C, followed by a conjugated secondary antibody and DAB staining. Counterstained with hematoxylin.$

Paraformaldehyde-fixed and paraffin-embedded Human spleen tissue incubated with CD3D (5C1) Monoclonal Antibody (bsm-52744R) at 1:100, overnight at 4\u00b0C, followed by a conjugated secondary antibody and DAB staining. Counterstained with hematoxylin.

$Paraformaldehyde-fixed and paraffin-embedded Human kidney tissue incubated with CD3D (5C1) Monoclonal Antibody (bsm-52744R) at 1:100, overnight at 4\u00b0C, followed by a conjugated secondary antibody and DAB staining. Counterstained with hematoxylin.$

Paraformaldehyde-fixed and paraffin-embedded Human kidney tissue incubated with CD3D (5C1) Monoclonal Antibody (bsm-52744R) at 1:100, overnight at 4\u00b0C, followed by a conjugated secondary antibody and DAB staining. Counterstained with hematoxylin.

Applications

WB
FCM
IHC-P
IF(ICC)
IHC

Reactivity

Human

Overview
Catalog #	bsm-52744R
Product Name	CD3D (5C1) Monoclonal Antibody
Applications	WB, FCM, IHC-P, IF(ICC), IHC
Reactivity	Human
Specifications
Conjugation	Unconjugated
Host	Rabbit
Source	C terminus human CD3D
Clonality	Monoclonal
Clone #	5C1
Isotype	IgG
Concentration	1ug/ul
Purification	Purified by Protein A.
Storage Buffer	Aqueous buffered solution containing 1xTBS (pH7.4), 1%BSA, 40%Glycerol and 0.05% Sodium Azide.
Storage Condition	Store at -20°C for 12 months.
Target
Gene ID	915
Swiss Prot	P04234
Synonyms	T-cell surface glycoprotein CD3 delta chain, T-cell receptor T3 delta chain, CD_antigen: CD3d, CD3D
Background	Part of the TCR-CD3 complex present on T-lymphocyte cell surface that plays an essential role in adaptive immune response. When antigen presenting cells (APCs) activate T-cell receptor (TCR), TCR-mediated signals are transmitted across the cell membrane by the CD3 chains CD3D, CD3E, CD3G and CD3Z. All CD3 chains contain immunoreceptor tyrosine-based activation motifs (ITAMs) in their cytoplasmic domain. Upon TCR engagement, these motifs become phosphorylated by Src family protein tyrosine kinases LCK and FYN, resulting in the activation of downstream signaling pathways (PubMed:2470098). In addition of this role of signal transduction in T-cell activation, CD3D plays an essential role in thymocyte differentiation. Indeed, participates in correct intracellular TCR-CD3 complex assembly and surface expression. In absence of a functional TCR-CD3 complex, thymocytes are unable to differentiate properly. Interacts with CD4 and CD8 and thus serves to establish a functional link between the TCR and coreceptors CD4 and CD8, which is needed for activation and positive selection of CD4 or CD8 T-cells(PubMed:12215456).
Application Dilution
WB	1:300-5000
FCM	1:20-100
IHC-P	1:200-400
IF(ICC)	1:50-200
IHC
