TOMM20 Recombinant Antibody

$4% Paraformaldehyde-fixed Hela (H) cell; Triton X-100 at r.t. for 20 min; Antibody incubation with (TOMM20) monoclonal Antibody, unconjugated (bsm-61211R) 1:100, 90 min at 37\u00b0C; followed by conjugated Goat Anti-Rabbit IgG antibody (green, bs-60295G-FITC) at 37\u00b0C for 90 min, DAPI (blue, C02-04002) was used to stain the cell nuclei. PBS instead of the primary antibody was used as the blank control.$

4% Paraformaldehyde-fixed Hela (H) cell; Triton X-100 at r.t. for 20 min; Antibody incubation with (TOMM20) monoclonal Antibody, unconjugated (bsm-61211R) 1:100, 90 min at 37\u00b0C; followed by conjugated Goat Anti-Rabbit IgG antibody (green, bs-60295G-FITC) at 37\u00b0C for 90 min, DAPI (blue, C02-04002) was used to stain the cell nuclei. PBS instead of the primary antibody was used as the blank control.

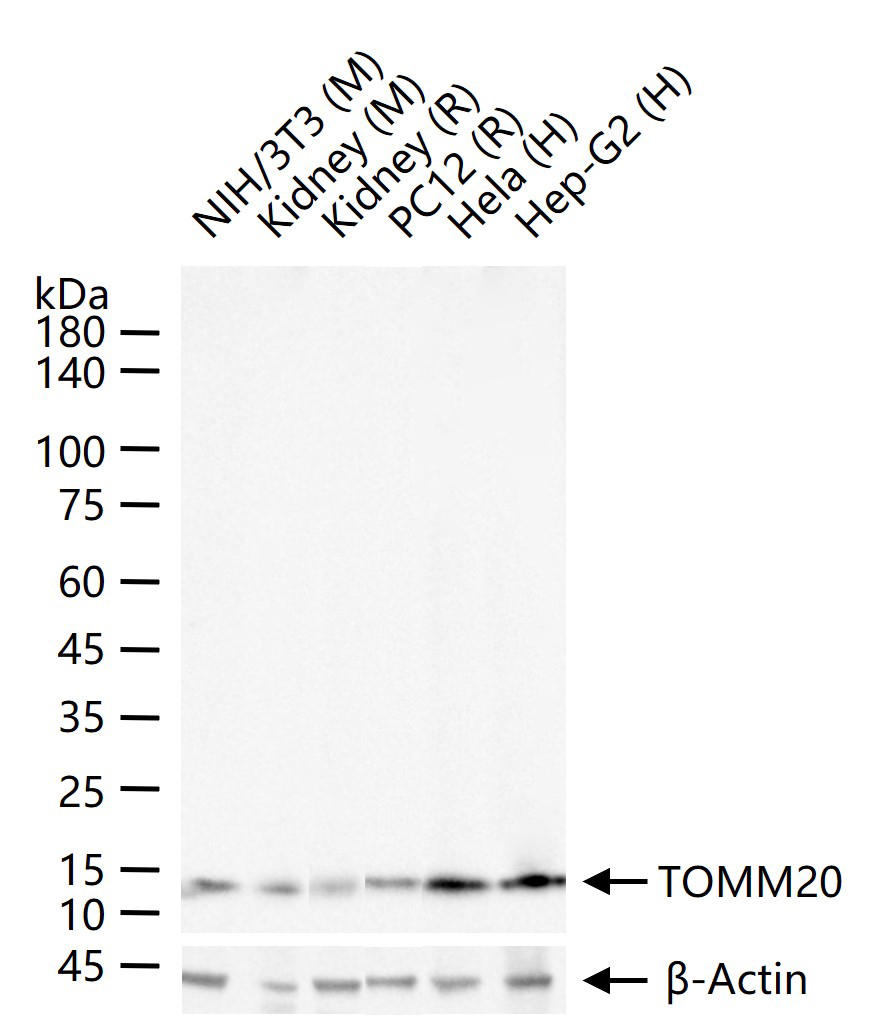

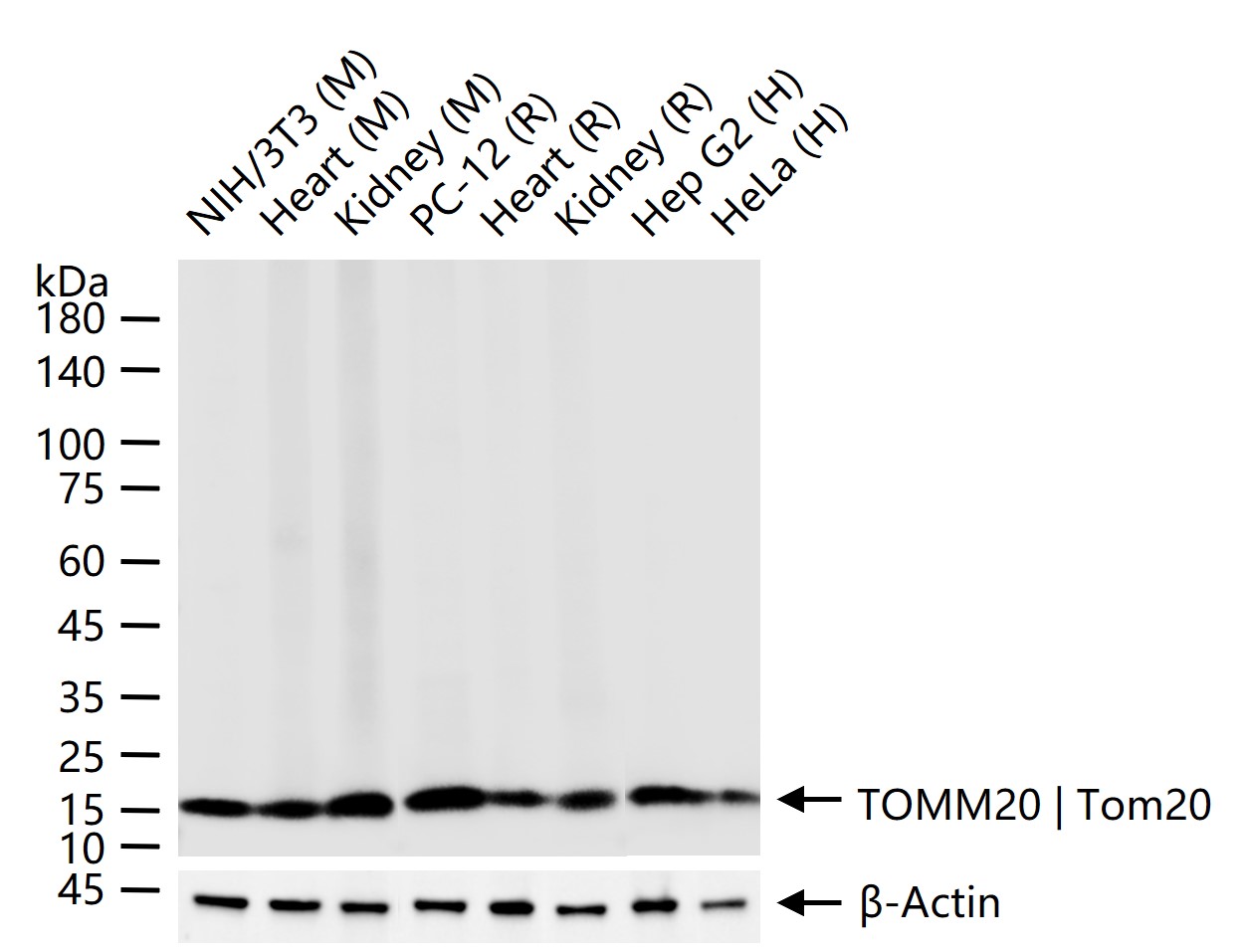

$25 ug total protein per lane of various lysates (see on figure) probed with TOMM20 monoclonal antibody, unconjugated (bsm-61211R) at 1:2000 dilution and 4\u00b0C overnight incubation. Followed by conjugated secondary antibody incubation at r.t. for 60 min.$

25 ug total protein per lane of various lysates (see on figure) probed with TOMM20 monoclonal antibody, unconjugated (bsm-61211R) at 1:2000 dilution and 4\u00b0C overnight incubation. Followed by conjugated secondary antibody incubation at r.t. for 60 min.

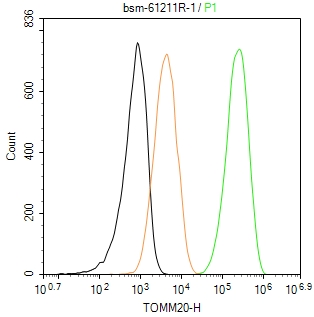

$The Hela (H) cells were fixed with 4% PFA (10 min at r.t.) and then permeabilized with 90% ice-cold methanol for 20 min at -20\u2103,the cells then were incubated in 5%BSA to block non-specific protein-protein interactions (30 min at r.t.).Primary Antibody (green):Rabbit Anti-TOMM20 antibody (bsm-61211R): 1 \u03bcg\/10^6 cells; Secondary Antibody (white blue): Goat anti-Rabbit IgG-FITC (bs-60295G-FITC): 1 \u03bcg\/test. Isotype Control (orange): Rabbit IgG (bs-0295P). Blank control (black): PBS. Acquisition of 20,000 events was performed.$

The Hela (H) cells were fixed with 4% PFA (10 min at r.t.) and then permeabilized with 90% ice-cold methanol for 20 min at -20\u2103,the cells then were incubated in 5%BSA to block non-specific protein-protein interactions (30 min at r.t.).Primary Antibody (green):Rabbit Anti-TOMM20 antibody (bsm-61211R): 1 \u03bcg\/10^6 cells; Secondary Antibody (white blue): Goat anti-Rabbit IgG-FITC (bs-60295G-FITC): 1 \u03bcg\/test. Isotype Control (orange): Rabbit IgG (bs-0295P). Blank control (black): PBS. Acquisition of 20,000 events was performed.

$Paraformaldehyde-fixed, paraffin embedded Mouse Colon; Antigen retrieval by boiling in sodium citrate buffer (pH6.0) for 15 min; The section was incubated with TOMM20 Monoclonal Antibody, Unconjugated (bsm-61211R) at 1:200 overnight at 4\u00b0C, followed by conjugation to the bs-0295G-HRP and DAB (C-0010) staining.$

Paraformaldehyde-fixed, paraffin embedded Mouse Colon; Antigen retrieval by boiling in sodium citrate buffer (pH6.0) for 15 min; The section was incubated with TOMM20 Monoclonal Antibody, Unconjugated (bsm-61211R) at 1:200 overnight at 4\u00b0C, followed by conjugation to the bs-0295G-HRP and DAB (C-0010) staining.

$Paraformaldehyde-fixed, paraffin embedded Rat Colon; Antigen retrieval by boiling in sodium citrate buffer (pH6.0) for 15 min; The section was incubated with TOMM20 Monoclonal Antibody, Unconjugated (bsm-61211R) at 1:200 overnight at 4\u00b0C, followed by conjugation to the bs-0295G-HRP and DAB (C-0010) staining.$

Paraformaldehyde-fixed, paraffin embedded Rat Colon; Antigen retrieval by boiling in sodium citrate buffer (pH6.0) for 15 min; The section was incubated with TOMM20 Monoclonal Antibody, Unconjugated (bsm-61211R) at 1:200 overnight at 4\u00b0C, followed by conjugation to the bs-0295G-HRP and DAB (C-0010) staining.

$Paraformaldehyde-fixed, paraffin embedded Human Colon; Antigen retrieval by boiling in sodium citrate buffer (pH6.0) for 15 min; The section was incubated with TOMM20 Monoclonal Antibody, Unconjugated (bsm-61211R) at 1:200 overnight at 4\u00b0C, followed by conjugation to the bs-0295G-HRP and DAB (C-0010) staining.$

Paraformaldehyde-fixed, paraffin embedded Human Colon; Antigen retrieval by boiling in sodium citrate buffer (pH6.0) for 15 min; The section was incubated with TOMM20 Monoclonal Antibody, Unconjugated (bsm-61211R) at 1:200 overnight at 4\u00b0C, followed by conjugation to the bs-0295G-HRP and DAB (C-0010) staining.

$Paraformaldehyde-fixed, paraffin embedded Mouse Kidney; Antigen retrieval by boiling in sodium citrate buffer (pH6.0) for 15 min; The section was incubated with TOMM20 Monoclonal Antibody, Unconjugated (bsm-61211R) at 1:200 overnight at 4\u00b0C, followed by conjugation to the bs-0295G-HRP and DAB (C-0010) staining.$

Paraformaldehyde-fixed, paraffin embedded Mouse Kidney; Antigen retrieval by boiling in sodium citrate buffer (pH6.0) for 15 min; The section was incubated with TOMM20 Monoclonal Antibody, Unconjugated (bsm-61211R) at 1:200 overnight at 4\u00b0C, followed by conjugation to the bs-0295G-HRP and DAB (C-0010) staining.

$Paraformaldehyde-fixed, paraffin embedded Rat Kidney; Antigen retrieval by boiling in sodium citrate buffer (pH6.0) for 15 min; The section was incubated with TOMM20 Monoclonal Antibody, Unconjugated (bsm-61211R) at 1:200 overnight at 4\u00b0C, followed by conjugation to the bs-0295G-HRP and DAB (C-0010) staining.$

Paraformaldehyde-fixed, paraffin embedded Rat Kidney; Antigen retrieval by boiling in sodium citrate buffer (pH6.0) for 15 min; The section was incubated with TOMM20 Monoclonal Antibody, Unconjugated (bsm-61211R) at 1:200 overnight at 4\u00b0C, followed by conjugation to the bs-0295G-HRP and DAB (C-0010) staining.

$Paraformaldehyde-fixed, paraffin embedded Human Kidney; Antigen retrieval by boiling in sodium citrate buffer (pH6.0) for 15 min; The section was incubated with TOMM20 Monoclonal Antibody, Unconjugated (bsm-61211R) at 1:200 overnight at 4\u00b0C, followed by conjugation to the bs-0295G-HRP and DAB (C-0010) staining.$

Paraformaldehyde-fixed, paraffin embedded Human Kidney; Antigen retrieval by boiling in sodium citrate buffer (pH6.0) for 15 min; The section was incubated with TOMM20 Monoclonal Antibody, Unconjugated (bsm-61211R) at 1:200 overnight at 4\u00b0C, followed by conjugation to the bs-0295G-HRP and DAB (C-0010) staining.

$Paraformaldehyde-fixed, paraffin embedded Human Small Intestine; Antigen retrieval by boiling in sodium citrate buffer (pH6.0) for 15 min; The section was incubated with TOMM20 Monoclonal Antibody, Unconjugated (bsm-61211R) at 1:200 overnight at 4\u00b0C, followed by conjugation to the bs-0295G-HRP and DAB (C-0010) staining.$

Paraformaldehyde-fixed, paraffin embedded Human Small Intestine; Antigen retrieval by boiling in sodium citrate buffer (pH6.0) for 15 min; The section was incubated with TOMM20 Monoclonal Antibody, Unconjugated (bsm-61211R) at 1:200 overnight at 4\u00b0C, followed by conjugation to the bs-0295G-HRP and DAB (C-0010) staining.

$Paraformaldehyde-fixed, paraffin embedded Rat Small Intestine; Antigen retrieval by boiling in sodium citrate buffer (pH6.0) for 15 min; The section was incubated with TOMM20 Monoclonal Antibody, Unconjugated (bsm-61211R) at 1:200 overnight at 4\u00b0C, followed by conjugation to the bs-0295G-HRP and DAB (C-0010) staining.$

Paraformaldehyde-fixed, paraffin embedded Rat Small Intestine; Antigen retrieval by boiling in sodium citrate buffer (pH6.0) for 15 min; The section was incubated with TOMM20 Monoclonal Antibody, Unconjugated (bsm-61211R) at 1:200 overnight at 4\u00b0C, followed by conjugation to the bs-0295G-HRP and DAB (C-0010) staining.

$Paraformaldehyde-fixed, paraffin embedded Human Lung Cancer; Antigen retrieval by boiling in sodium citrate buffer (pH6.0) for 15 min; The section was incubated with TOMM20 Monoclonal Antibody, Unconjugated (bsm-61211R) at 1:200 overnight at 4\u00b0C, followed by conjugation to the bs-0295G-HRP and DAB (C-0010) staining.$

Paraformaldehyde-fixed, paraffin embedded Human Lung Cancer; Antigen retrieval by boiling in sodium citrate buffer (pH6.0) for 15 min; The section was incubated with TOMM20 Monoclonal Antibody, Unconjugated (bsm-61211R) at 1:200 overnight at 4\u00b0C, followed by conjugation to the bs-0295G-HRP and DAB (C-0010) staining.

$Paraformaldehyde-fixed, paraffin embedded Human Cervical Cancer; Antigen retrieval by boiling in sodium citrate buffer (pH6.0) for 15 min; The section was incubated with TOMM20 Monoclonal Antibody, Unconjugated (bsm-61211R) at 1:200 overnight at 4\u00b0C, followed by conjugation to the bs-0295G-HRP and DAB (C-0010) staining.$

Paraformaldehyde-fixed, paraffin embedded Human Cervical Cancer; Antigen retrieval by boiling in sodium citrate buffer (pH6.0) for 15 min; The section was incubated with TOMM20 Monoclonal Antibody, Unconjugated (bsm-61211R) at 1:200 overnight at 4\u00b0C, followed by conjugation to the bs-0295G-HRP and DAB (C-0010) staining.

$Paraformaldehyde-fixed, paraffin embedded Human Ovarian Cancer; Antigen retrieval by boiling in sodium citrate buffer (pH6.0) for 15 min; The section was incubated with TOMM20 Monoclonal Antibody, Unconjugated (bsm-61211R) at 1:200 overnight at 4\u00b0C, followed by conjugation to the bs-0295G-HRP and DAB (C-0010) staining.$

Paraformaldehyde-fixed, paraffin embedded Human Ovarian Cancer; Antigen retrieval by boiling in sodium citrate buffer (pH6.0) for 15 min; The section was incubated with TOMM20 Monoclonal Antibody, Unconjugated (bsm-61211R) at 1:200 overnight at 4\u00b0C, followed by conjugation to the bs-0295G-HRP and DAB (C-0010) staining.

$Paraformaldehyde-fixed, paraffin embedded Human Prostate Tumor; Antigen retrieval by boiling in sodium citrate buffer (pH6.0) for 15 min; The section was incubated with TOMM20 Monoclonal Antibody, Unconjugated (bsm-61211R) at 1:200 overnight at 4\u00b0C, followed by conjugation to the bs-0295G-HRP and DAB (C-0010) staining.$

Paraformaldehyde-fixed, paraffin embedded Human Prostate Tumor; Antigen retrieval by boiling in sodium citrate buffer (pH6.0) for 15 min; The section was incubated with TOMM20 Monoclonal Antibody, Unconjugated (bsm-61211R) at 1:200 overnight at 4\u00b0C, followed by conjugation to the bs-0295G-HRP and DAB (C-0010) staining.

Applications

WB
IHC-P
IHC-F
IF
Flow-Cyt
ICC/IF

Reactivity

Human
Mouse
Rat

Overview
Catalog #	bsm-61211r-TR
Product Name	TOMM20 Recombinant Antibody
Applications	WB, IHC-P, IHC-F, IF, Flow-Cyt, ICC/IF
Reactivity	Human, Mouse, Rat
Specifications
Conjugation	Unconjugated
Host	Rabbit
Source	KLH conjugated synthetic peptide derived from human TOMM20
Clonality	Recombinant
Isotype	IgG
Concentration	Lot dependent
Purification	Purified by Protein A.
Storage Buffer	0.01M TBS (pH 7.4), 1% BSA, 0.02% Proclin 300, and 50% Glycerol
Storage Condition	Shipped at 4C. Store at -20C for one year. Avoid repeated freeze/thaw cycles.
Target
Gene ID	9804
Swiss Prot	Q15388
Subcellular location	Cytoplasm
Synonyms	Mitochondrial import receptor subunit TOM20 homolog; Outer mitochondrial membrane receptor Tom20.
Background	Central component of the receptor complex responsible for the recognition and translocation of cytosolically synthesized mitochondrial preproteins. Together with TOM22 functions as the transit peptide receptor at the surface of the mitochondrion outer membrane and facilitates the movement of preproteins into the TOM40 translocation pore (By similarity).Required for the translocation across the mitochondrial outer membrane of cytochrome P450 monooxygenases.
Application Dilution
WB	1:300-5000
IHC-P	1:200-400
IHC-F	1:100-500
IF
Flow-Cyt	1ug/Test
ICC/IF	1:50-100
