GRIM19 Recombinant Antibody

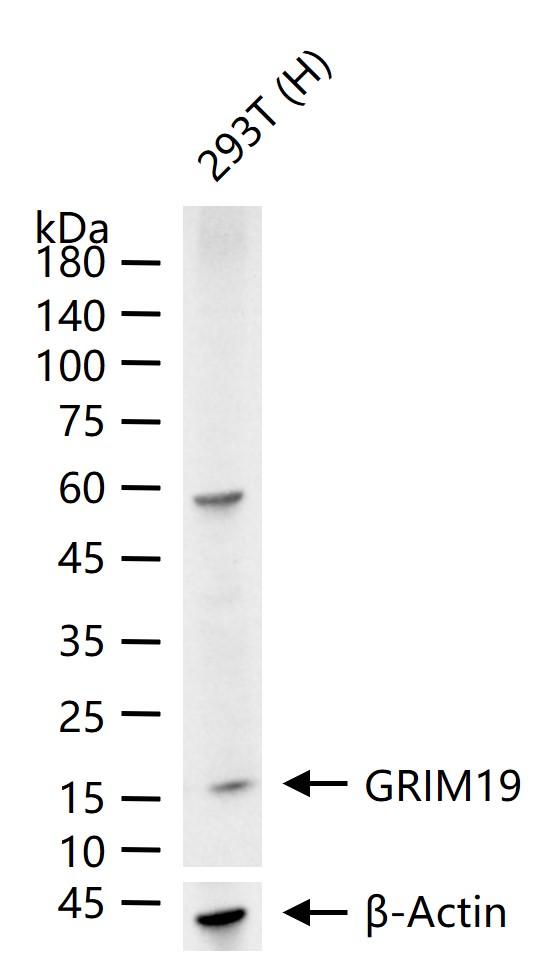

$25 ug total protein per lane of various lysates (see on figure) probed with GRIM19 monoclonal antibody, unconjugated (bsm-61922R) at 1:1000 dilution and 4\u00b0C overnight incubation. Followed by conjugated secondary antibody incubation at r.t. for 60 min.$

25 ug total protein per lane of various lysates (see on figure) probed with GRIM19 monoclonal antibody, unconjugated (bsm-61922R) at 1:1000 dilution and 4\u00b0C overnight incubation. Followed by conjugated secondary antibody incubation at r.t. for 60 min.

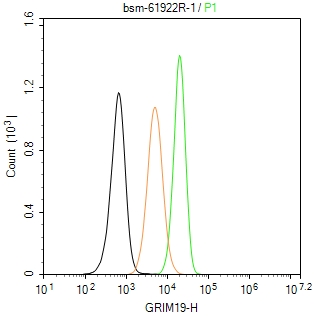

$The Hela (H) cells were fixed with 4% PFA (10 min at r.t.) and then permeabilized with 90% ice-cold methanol for 20 min at -20\u2103,the cells then were incubated in 5%BSA to block non-specific protein-protein interactions (30 min at r.t.), followed by secondary antibody incubation for 40 min at room temperature. Primary Antibody (green):Rabbit Anti-GRIM19 antibody (bsm-61922R,1:100); Isotype Control (orange): Rabbit IgG (bs-0295P). Blank control (black): PBS. Acquisition of 20,000 events was performed.$

The Hela (H) cells were fixed with 4% PFA (10 min at r.t.) and then permeabilized with 90% ice-cold methanol for 20 min at -20\u2103,the cells then were incubated in 5%BSA to block non-specific protein-protein interactions (30 min at r.t.), followed by secondary antibody incubation for 40 min at room temperature. Primary Antibody (green):Rabbit Anti-GRIM19 antibody (bsm-61922R,1:100); Isotype Control (orange): Rabbit IgG (bs-0295P). Blank control (black): PBS. Acquisition of 20,000 events was performed.

$Paraformaldehyde-fixed, paraffin embedded Human Liver Cancer; Antigen retrieval by boiling in sodium citrate buffer (pH6.0) for 15 min; The section was incubated with GRIM19 Monoclonal Antibody, Unconjugated (bsm-61922R) at 1:200 overnight at 4\u00b0C, followed by conjugation to the bs-0295G-HRP and DAB (C-0010) staining.$

Paraformaldehyde-fixed, paraffin embedded Human Liver Cancer; Antigen retrieval by boiling in sodium citrate buffer (pH6.0) for 15 min; The section was incubated with GRIM19 Monoclonal Antibody, Unconjugated (bsm-61922R) at 1:200 overnight at 4\u00b0C, followed by conjugation to the bs-0295G-HRP and DAB (C-0010) staining.

$Paraformaldehyde-fixed, paraffin embedded Human Liver; Antigen retrieval by boiling in sodium citrate buffer (pH6.0) for 15 min; The section was incubated with GRIM19 Monoclonal Antibody, Unconjugated (bsm-61922R) at 1:200 overnight at 4\u00b0C, followed by conjugation to the bs-0295G-HRP and DAB (C-0010) staining.$

Paraformaldehyde-fixed, paraffin embedded Human Liver; Antigen retrieval by boiling in sodium citrate buffer (pH6.0) for 15 min; The section was incubated with GRIM19 Monoclonal Antibody, Unconjugated (bsm-61922R) at 1:200 overnight at 4\u00b0C, followed by conjugation to the bs-0295G-HRP and DAB (C-0010) staining.

$Paraformaldehyde-fixed, paraffin embedded Human Cerebrum;Antigen retrieval by boiling in sodium citrate buffer (pH6.0) for 15 min; The section was incubated with GRIM19 Monoclonal Antibody, Unconjugated (bsm-61922R) at 1:200 overnight at 4\u00b0C, followed by conjugation to the bs-0295G-HRP and DAB (C-0010) staining.$

Paraformaldehyde-fixed, paraffin embedded Human Cerebrum;Antigen retrieval by boiling in sodium citrate buffer (pH6.0) for 15 min; The section was incubated with GRIM19 Monoclonal Antibody, Unconjugated (bsm-61922R) at 1:200 overnight at 4\u00b0C, followed by conjugation to the bs-0295G-HRP and DAB (C-0010) staining.

$Paraformaldehyde-fixed, paraffin embedded Human Kidney; Antigen retrieval by boiling in sodium citrate buffer (pH6.0) for 15 min; The section was incubated with GRIM19 Monoclonal Antibody, Unconjugated (bsm-61922R) at 1:200 overnight at 4\u00b0C, followed by conjugation to the bs-0295G-HRP and DAB (C-0010) staining.$

Paraformaldehyde-fixed, paraffin embedded Human Kidney; Antigen retrieval by boiling in sodium citrate buffer (pH6.0) for 15 min; The section was incubated with GRIM19 Monoclonal Antibody, Unconjugated (bsm-61922R) at 1:200 overnight at 4\u00b0C, followed by conjugation to the bs-0295G-HRP and DAB (C-0010) staining.

$Paraformaldehyde-fixed, paraffin embedded Human Heart;Antigen retrieval by boiling in sodium citrate buffer (pH6.0) for 15 min; The section was incubated with GRIM19 Monoclonal Antibody, Unconjugated (bsm-61922R) at 1:200 overnight at 4\u00b0C, followed by conjugation to the bs-0295G-HRP and DAB (C-0010) staining.$

Paraformaldehyde-fixed, paraffin embedded Human Heart;Antigen retrieval by boiling in sodium citrate buffer (pH6.0) for 15 min; The section was incubated with GRIM19 Monoclonal Antibody, Unconjugated (bsm-61922R) at 1:200 overnight at 4\u00b0C, followed by conjugation to the bs-0295G-HRP and DAB (C-0010) staining.

$Paraformaldehyde-fixed, paraffin embedded Human Breast Cancer; Antigen retrieval by boiling in sodium citrate buffer (pH6.0) for 15 min; The section was incubated with GRIM19 Monoclonal Antibody, Unconjugated (bsm-61922R) at 1:200 overnight at 4\u00b0C, followed by conjugation to the bs-0295G-HRP and DAB (C-0010) staining.$

Paraformaldehyde-fixed, paraffin embedded Human Breast Cancer; Antigen retrieval by boiling in sodium citrate buffer (pH6.0) for 15 min; The section was incubated with GRIM19 Monoclonal Antibody, Unconjugated (bsm-61922R) at 1:200 overnight at 4\u00b0C, followed by conjugation to the bs-0295G-HRP and DAB (C-0010) staining.

Applications

WB
FCM
IHC-P
IHC-F
IF(IHC-P)

Reactivity

Human

Overview
Catalog #	bsm-61922r-100ul
Product Name	GRIM19 Recombinant Antibody
Applications	WB, FCM, IHC-P, IHC-F, IF(IHC-P)
Reactivity	Human
Specifications
Conjugation	Unconjugated
Host	Rabbit
Source	KLH conjugated synthetic peptide derived from human NDUFA13
Clonality	Recombinant
Isotype	IgG
Concentration	Lot dependent
Purification	Purified by Protein A.
Storage Buffer	0.01M TBS (pH 7.4), 1% BSA, 0.02% Proclin 300, and 50% Glycerol
Storage Condition	Shipped at 4C. Store at -20C for one year. Avoid repeated freeze/thaw cycles.
Target
Gene ID	51079
Swiss Prot	Q9P0J0
Subcellular location	Cytoplasm, Nucleus, Cell membrane
Synonyms	B16.6; CDA016; CGI-39; GRIM19; GRIM-19.
Background	Accessory subunit of the mitochondrial membrane respiratory chain NADH dehydrogenase (Complex I), that is believed not to be involved in catalysis.Complex I functions in the transfer of electrons from NADH to the respiratory chain. The immediate electron acceptor for the enzyme is believed to be ubiquinone.
Application Dilution
WB	1:500-2000
FCM	FCM1:50-100
IHC-P	IHC-P1:100-200
IHC-F	IHC-F1:100-200
IF(IHC-P)	IFIHC-P1:100-200
